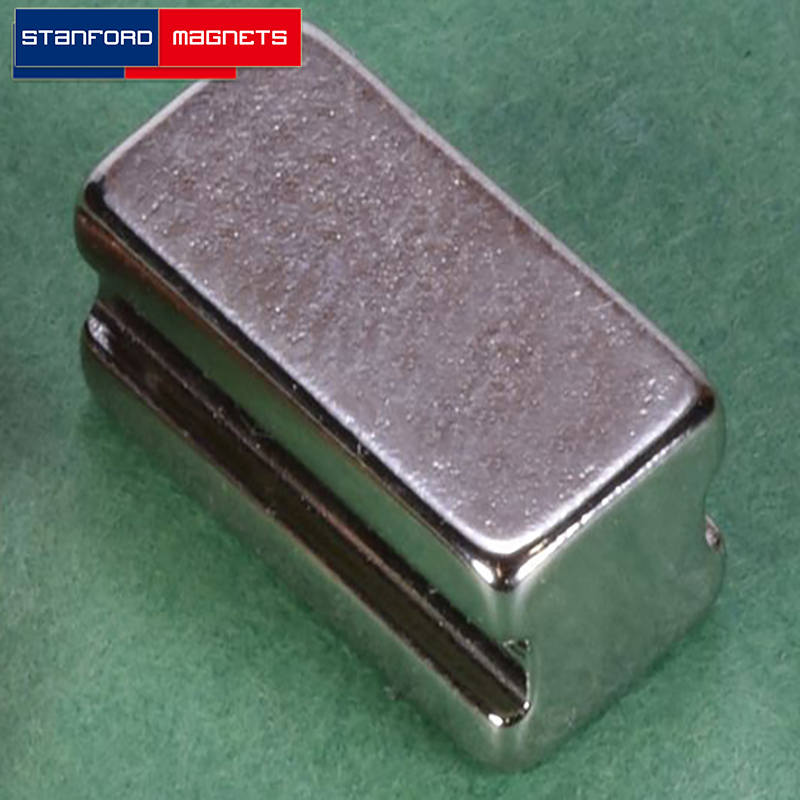

SMBN0517 Neodymium Block Magnet

Product ID: SMBN0517

{{el.prop}}: {{el.options}}

DESCRIPTION
TECHNICAL
TECHNICAL DATA SHEET
The SMBN0517 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2" length × 1" width × 1/4" thick , with step IN, magnetized through thickness, with the tolerance of ±0.004" × ±0.004". The weight of this super strong neodymium magnet is 0.0315 lbs. It can pull up to 18.93 lbs steel. And the surface field is up to 3887 gausses.
Download a PDF Specification Sheet
