SMBN0520 Neodymium BLOCK Magnet | Stanford Magnets

SMBN0520 Neodymium BLOCK Magnet

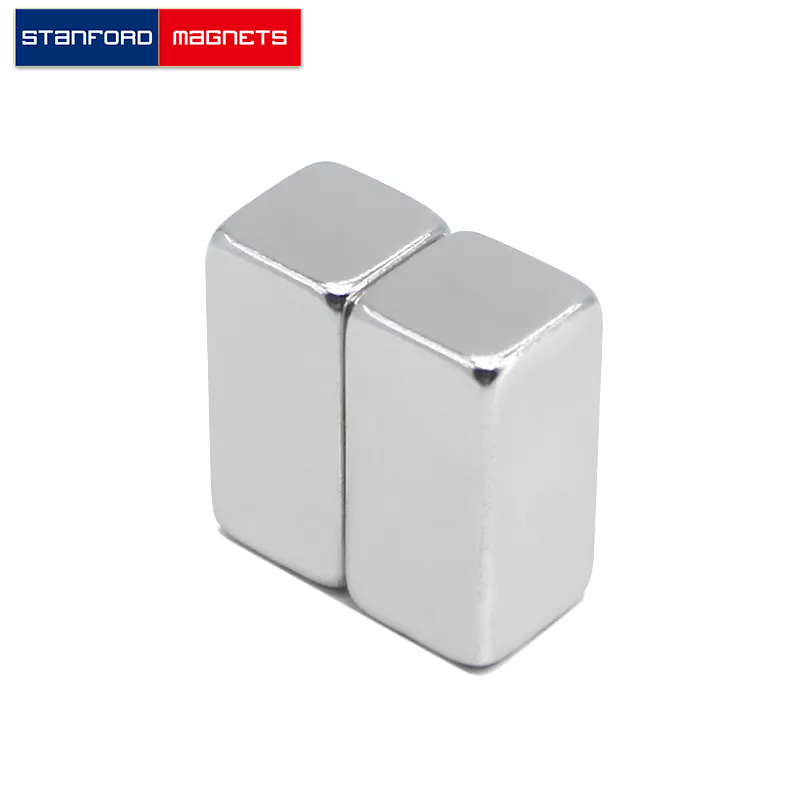

The SMBN0520 BLOCK neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 1″ × 1/2″ × 1/2″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0675 lbs. It can pull up to 38.39 lbs steel. And the surface field is up to 5884 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0520
Material: NdFeB
Shape: Block
Dimension: 1” x 1/2” x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 1.08
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 38.39
Surface Field(Gauss): 5884
Magnetization direction: Through Thickness
Magnetic Face: 1″ x 1/2″
Max Operating Temp(C/F): 80/176
