SMBN0523 Neodymium Block Magnet | Stanford Magnets

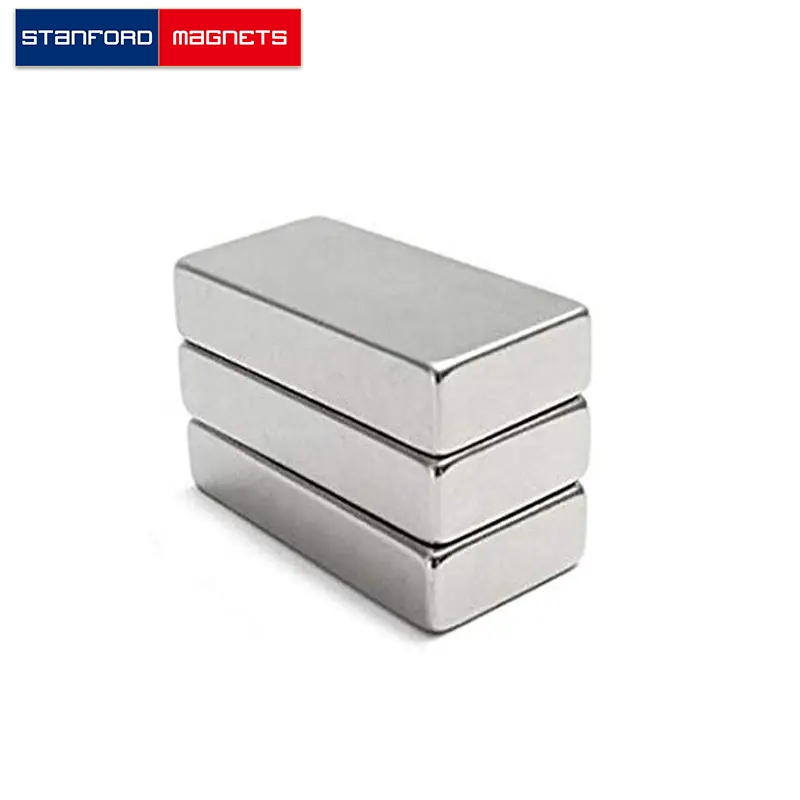

SMBN0523 Neodymium Block Magnet

Product ID: SMBN0523
Material: NdFeB
Shape: Block

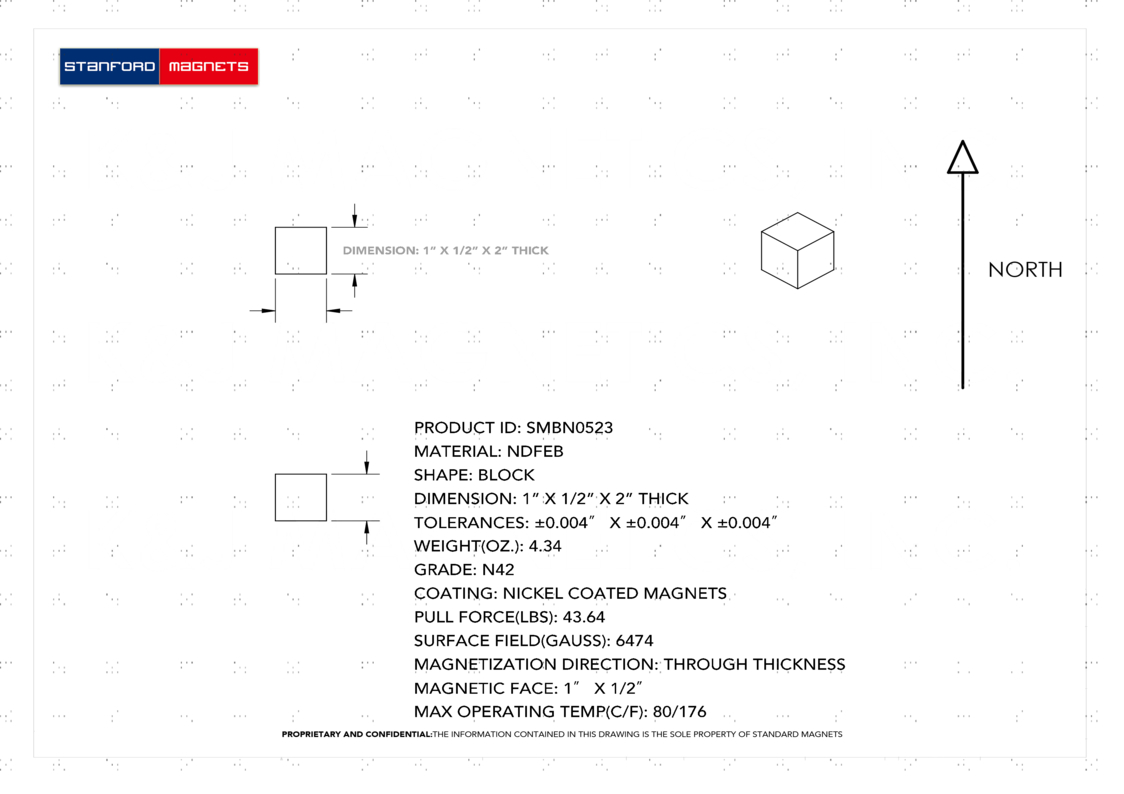

Dimension: 1” x 1/2” x 2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 4.34
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 43.64
Surface Field(Gauss): 6474
Magnetization Direction: Through Thickness
Magnetic Face: 1″ x 1/2″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0523 block neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ × 1/2″ × 2″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.27125 lbs. It can pull up to 43.64 lbs steel. And the surface field is up to 6474 gausses.
