SMBN0527 Neodymium Block Magnet | Stanford Magnets

SMBN0527 Neodymium Block Magnet

Product ID: SMBN0527
Material: NdFeB
Shape: Block
Dimension: 1” x 3/4” x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 1.63
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 52.78
Surface Field(Gauss): 5336
Magnetization Direction: Through Thickness
Magnetic Face: 1″ x 3/4″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

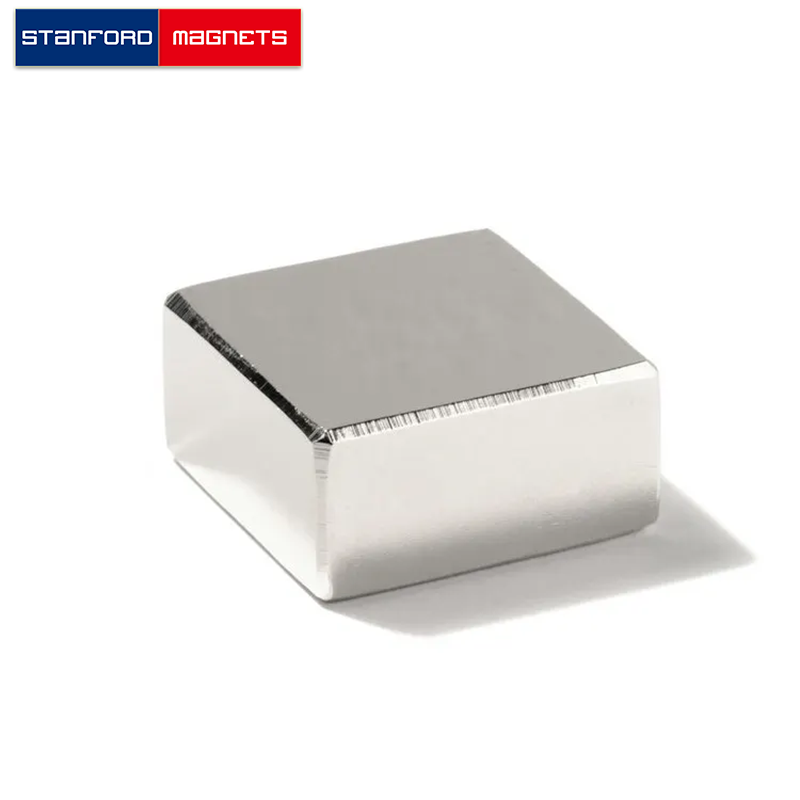

The SMBN0527 block neodymium magnet is made from high-performance N52 NdFeB, with Nickel coating. The dimension of this item is 1″ × 3/4″ × 1/2″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.101875 lbs. It can pull up to 52.78 lbs steel. And the surface field is up to 5336 gausses.
