SMBN0528 Neodymium Block Magnet | Stanford Magnets

SMBN0528 Neodymium Block Magnet

Product ID: SMBN0528
Material: NdFeB
Shape: Block
Dimension: 1” x 3/4” x 3/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 2.44
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 53.06
Surface Field(Gauss): 5547
Magnetization Direction: Through Thickness
Magnetic Face: 1″ x 3/4″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

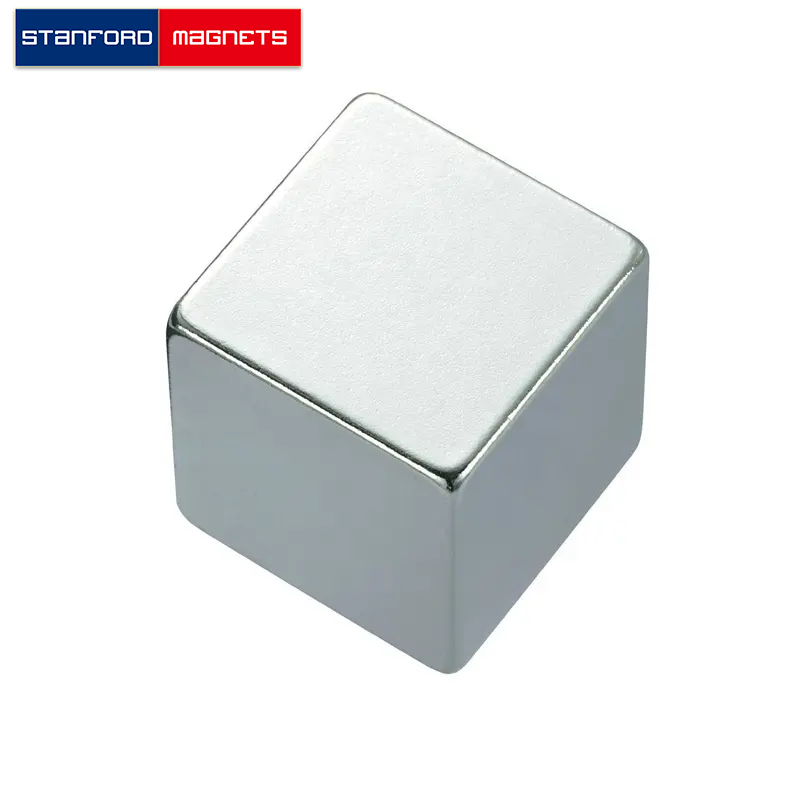

The SMBN0528 block neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ × 3/4″ × 3/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.1525 lbs. It can pull up to 53.06 lbs steel. And the surface field is up to 5547 gausses.
