SMBN0536 Neodymium BLOCK Magnet

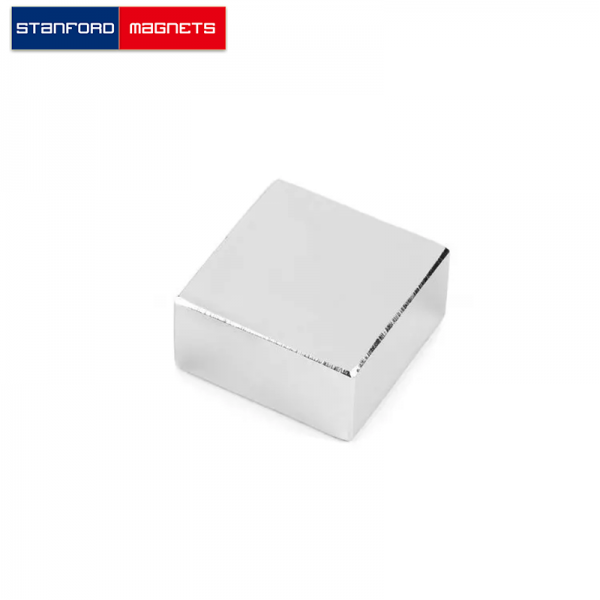

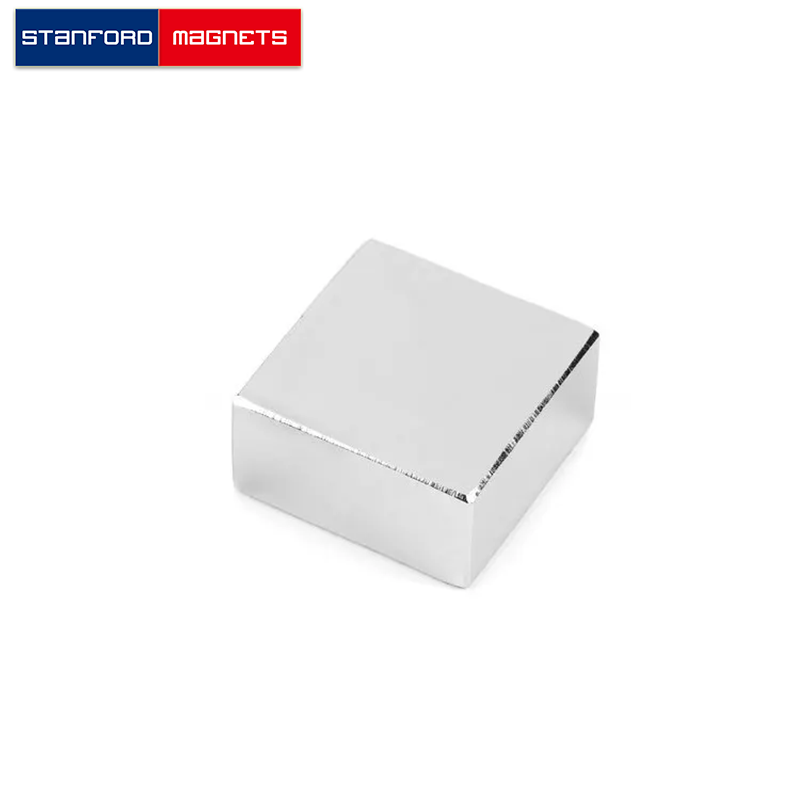

The SMBN0536 BLOCK neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 1″ × 1″ × 3/8″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.101875 lbs. It can pull up to 53.53 lbs steel. And the surface field is up to 4128 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0536
Material: NdFeB
Shape: Block
Dimension: 1” x 1” x 3/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 1.63
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 53.53
Surface Field(Gauss): 4128
Magnetization direction: Through Thickness
Magnetic Face: 1″ x 1″
Max Operating Temp(C/F): 80/176
