SMBN0537 Neodymium Block Magnet | Stanford Magnets

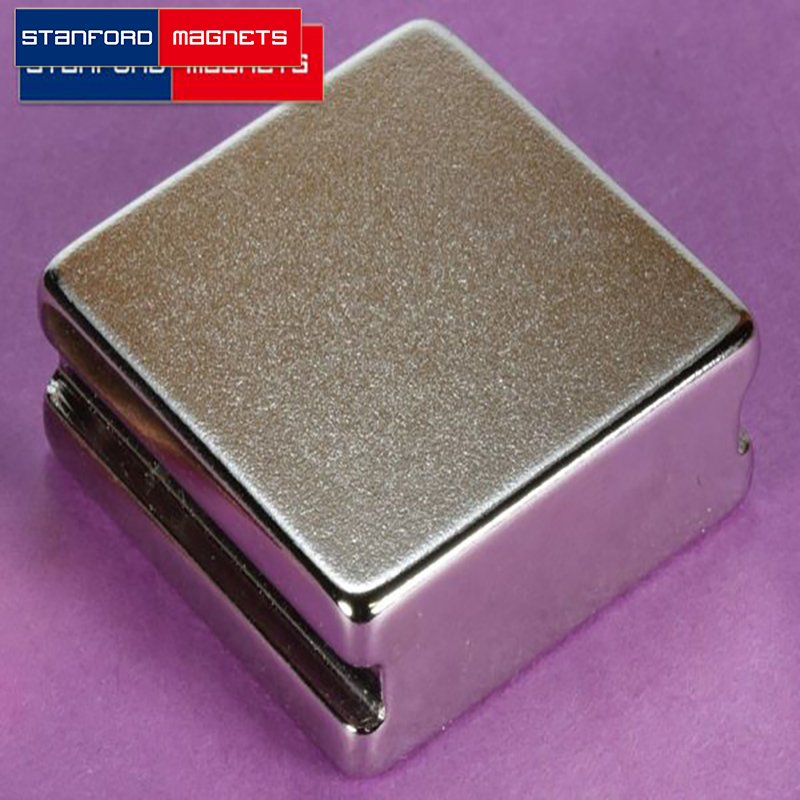

Name: SMBN0537 Neodymium Block Magnet
SKU: SMBN0537

SMBN0537 Neodymium Block Magnet

Product ID: SMBN0537
Material: NdFeB
Shape: Block
Dimension: 1” length x 1” width x 3/8” thick , with step IN
Tolerances: ±0.004″ x ±0.004″ × ±0.004″
Weight(Oz.): 1.56
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 41.44
Surface Field(Gauss): 3751
Magnetization Direction: Through Thickness
Magnetic Face: 1″ length x 1″ width
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

Description

Description

The SMBN0537 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ length × 1″ width × 3/8″ thick, with step IN, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0975 lbs. It can pull up to 41.44 lbs steel. And the surface field is up to 3751 gausses.
