SMBN0538 Neodymium Block Magnet | Stanford Magnets

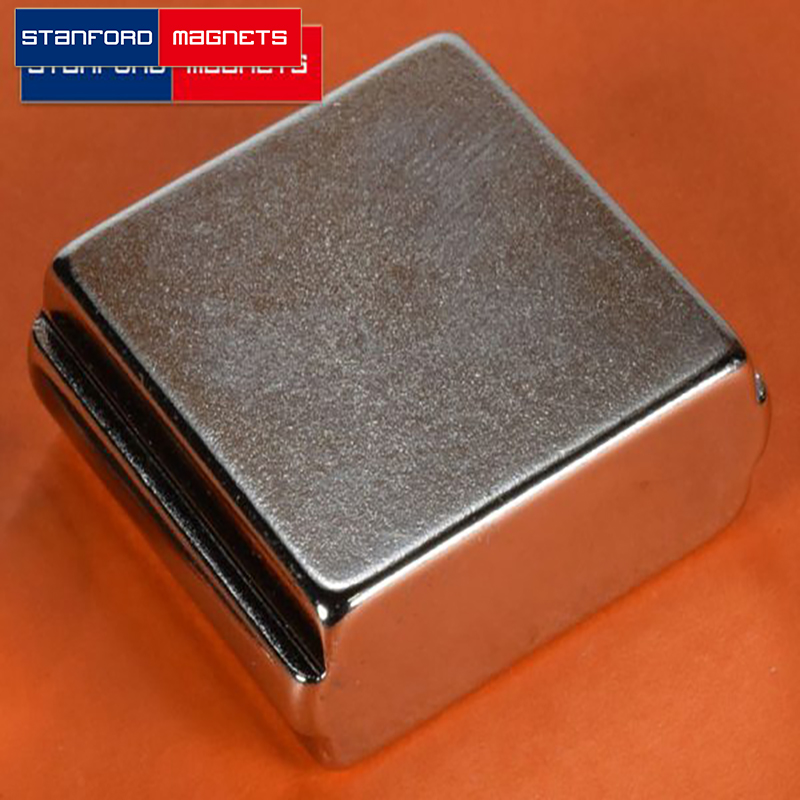

SMBN0538 Neodymium Block Magnet

Product ID: SMBN0538
Material: NdFeB
Shape: Block
Dimension: 1” length x 1” width x 3/8” thick , with step OUT
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 1.69
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 45.04
Surface Field(Gauss): 3528
Magnetization Direction: Through Thickness
Magnetic Face: 1″ length x 1″ width
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


The SMBN0538 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ length × 1″ width × 3/8″ thick, with step OUT, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.105625 lbs. It can pull up to 45.04 lbs steel. And the surface field is up to 3528 gausses.
