SMBN0539 Neodymium BLOCK Magnet

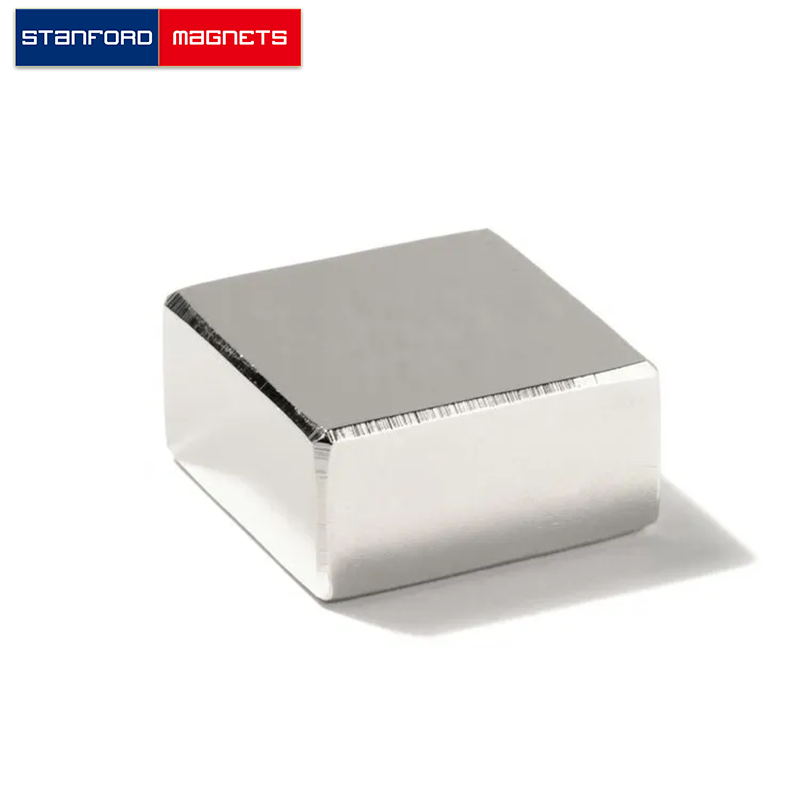

The SMBN0539 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ × 1″ × 1/2″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.135625 lbs. It can pull up to 54.44 lbs steel. And the surface field is up to 4400 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMBN0539
Material: NdFeB
Shape: Block
Dimension: 1” x 1” x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 2.17
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 54.44
Surface Field(Gauss): 4400
Magnetization direction: Through Thickness
Magnetic Face: 1″ x 1″
Max Operating Temp(C/F): 80/176
