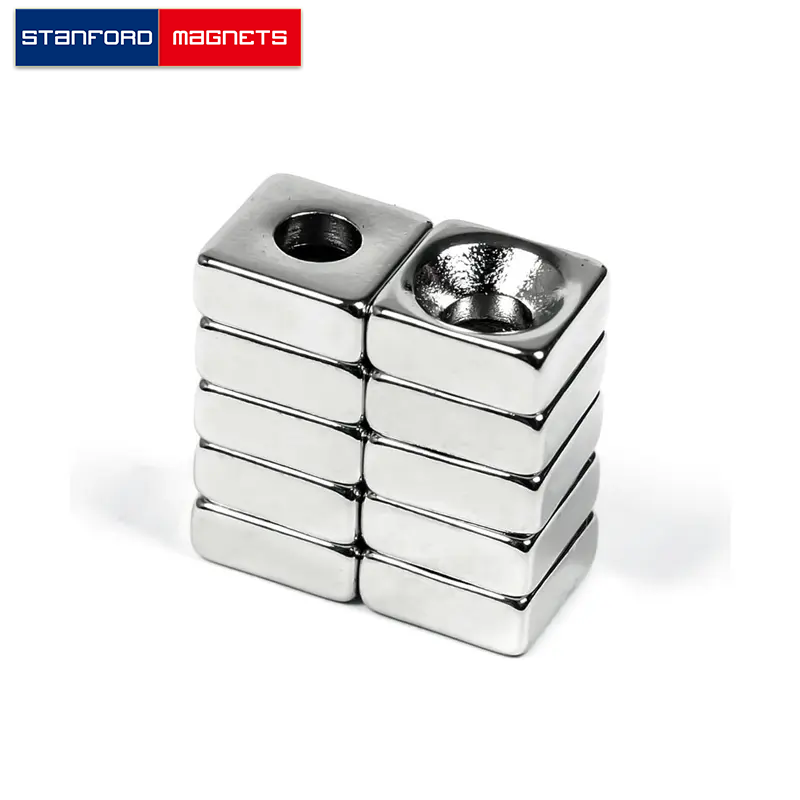

SMBN0541 Neodymium Countersunk Magnet

The SMBN0541 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ × 1″ × 1/2″ thick w/ hole to accept a #10 screw, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.12375 lbs. It can pull up to 48.45 lbs steel. And the surface field is up to 3916 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0541
Material: NdFeB
Shape: Countersunk
Dimension: 1” x 1” x 1/2” thick w/ hole to accept a #10 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 1.98
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 48.45
Surface Field(Gauss): 3916
Magnetization direction: Through Thickness
Magnetic Face: 1″ x 1″
Max Operating Temp(C/F): 80/176
