SMBN0551 Neodymium BLOCK Magnet

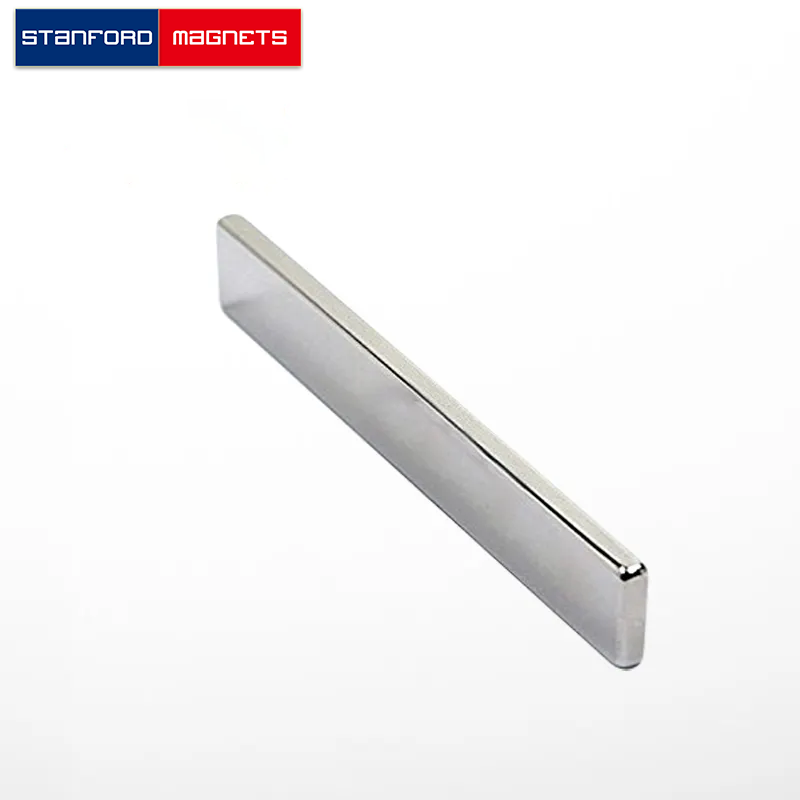

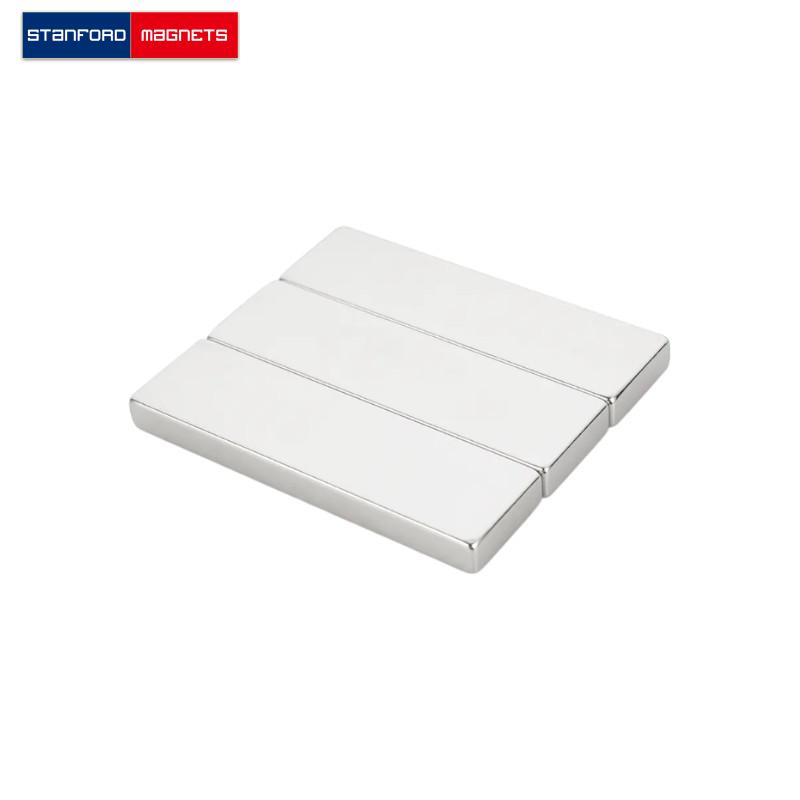

The SMBN0551 BLOCK neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 1 1/2″ × 1/2″ × 1/8″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0254375 lbs. It can pull up to 15.3 lbs steel. And the surface field is up to 2309 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0551
Material: NdFeB
Shape: Block
Dimension: 1 1/2” x 1/2” x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.41
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 15.3
Surface Field(Gauss): 2309
Magnetization direction: Through Thickness
Magnetic Face: 1 1/2″ x 1/2″
Max Operating Temp(C/F): 80/176
