SMBN0560 Neodymium BLOCK Magnet | Stanford Magnets

SMBN0560 Neodymium BLOCK Magnet

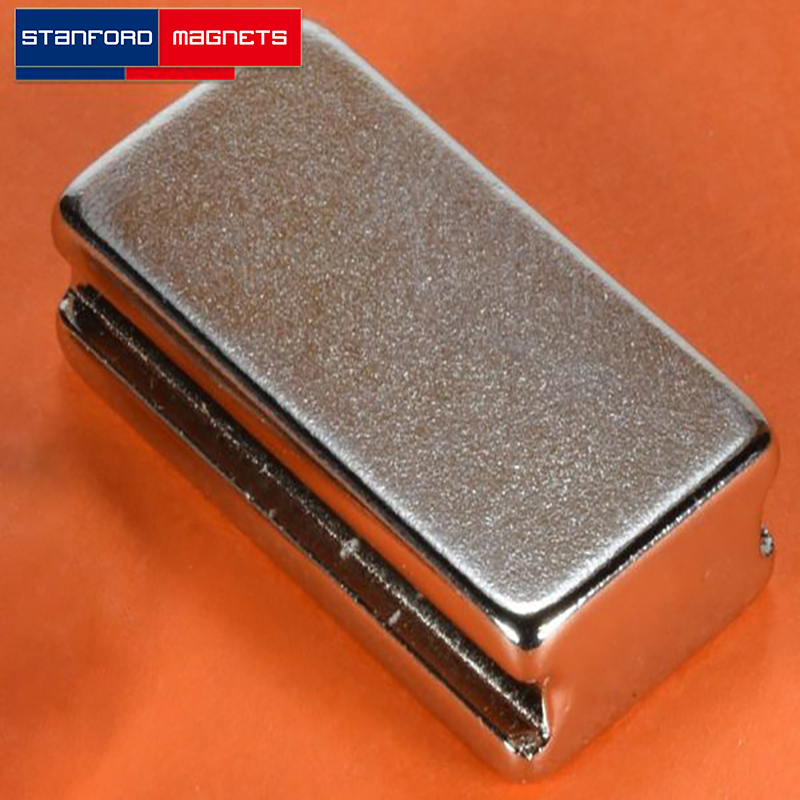

The SMBN0560 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ length × 1 1/2″ width × 3/8″ thick , with step IN, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.108125 lbs. It can pull up to 43.51 lbs steel. And the surface field is up to 3839 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0560
Material: NdFeB
Shape: Block
Dimension: 3/4” length x 1 1/2” width x 3/8” thick , with step IN
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 1.73
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 43.51
Surface Field(Gauss): 3839
Magnetization direction: Through Thickness
Magnetic Face: 3/4″ length x 1 1/2″ width
Max Operating Temp(C/F): 80/176
