SMBN0561 Neodymium Block Magnet

Product ID: SMBN0561
Material: NdFeB
Shape: Block
Dimension: 3/4” length x 1 1/2” width x 3/8” thick , with step OUT
Tolerances: ±0.004″ x ±0.004″ × ±0.004″
Weight(Oz.): 1.93
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 48.63
Surface Field(Gauss): 3605
Magnetization Direction: Through Thickness
Magnetic Face: 3/4″ length x 1 1/2″ width
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

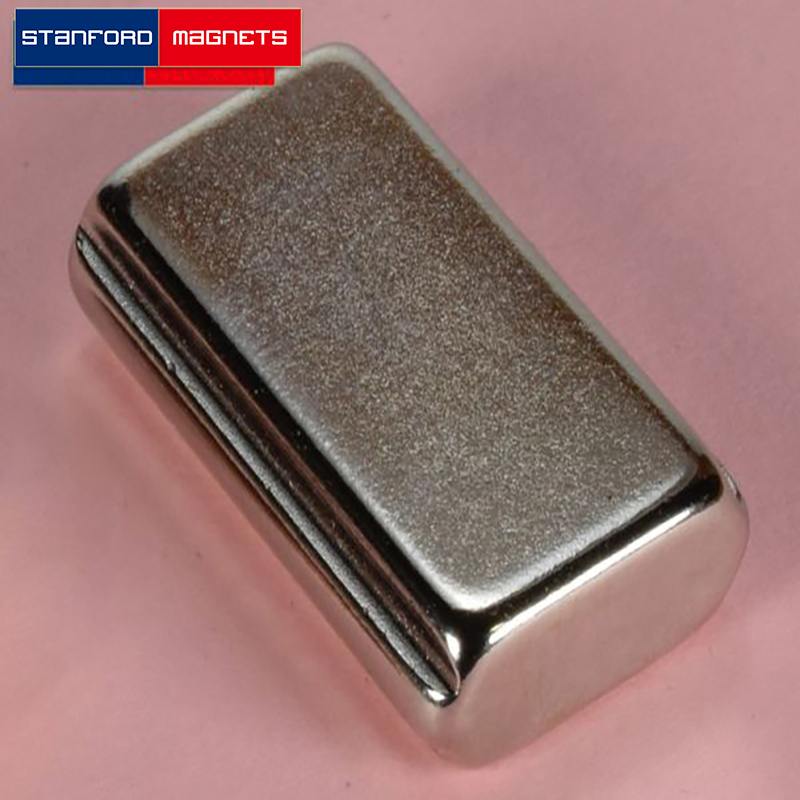

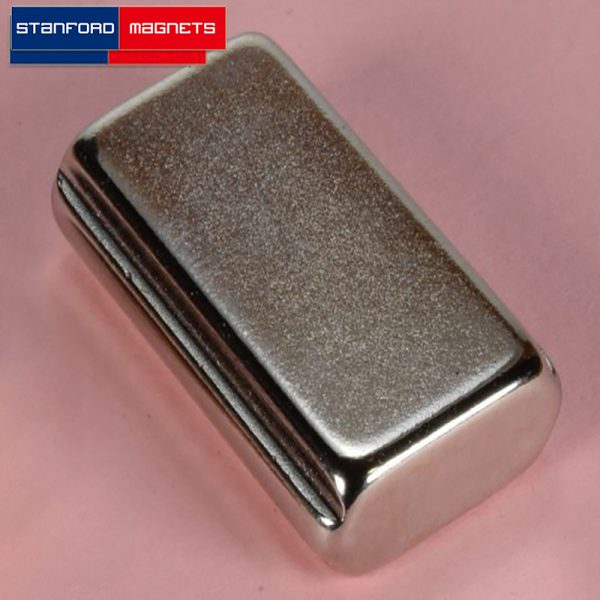

The SMBN0561 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ length × 1 1/2″ width × 3/8″ thick, with step OUT, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.120625 lbs. It can pull up to 48.63 lbs steel. And the surface field is up to 3605 gausses.
