SMBN0564 Neodymium Block Magnet

Product ID: SMBN0564
Material: NdFeB
Shape: Block
Dimension: 1 1/2” x 1” x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.81
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 18.33
Surface Field(Gauss): 1237
Magnetization Direction: Through Thickness
Magnetic Face: 1 1/2″ x 1″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

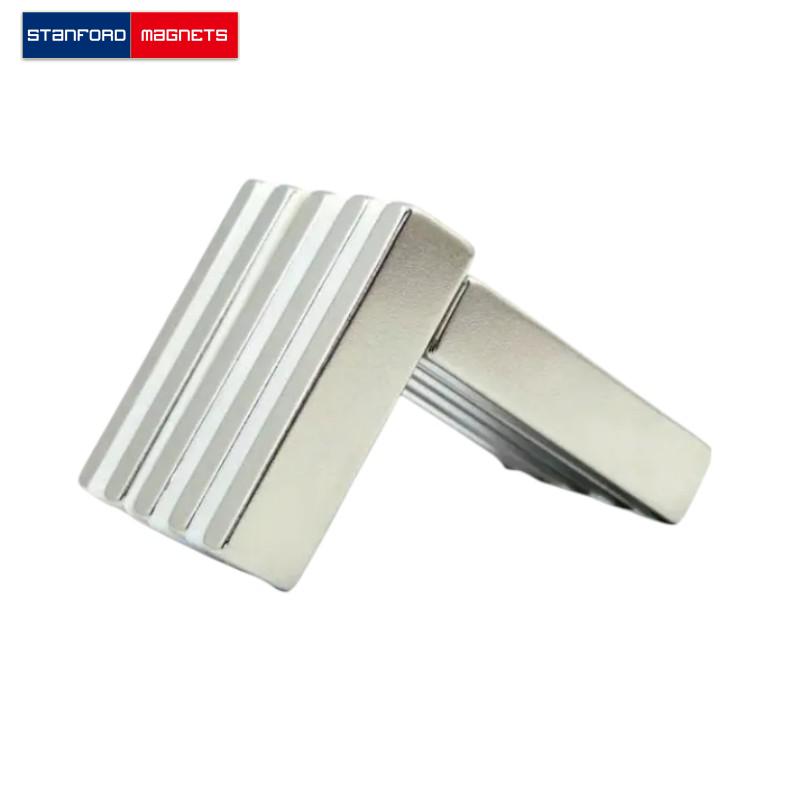

The SMBN0564 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1 1/2″ × 1″ × 1/8″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0508125 lbs. It can pull up to 18.33 lbs steel. And the surface field is up to 1237 gauss.
