SMBN0575 Neodymium Block Magnet | Stanford Magnets

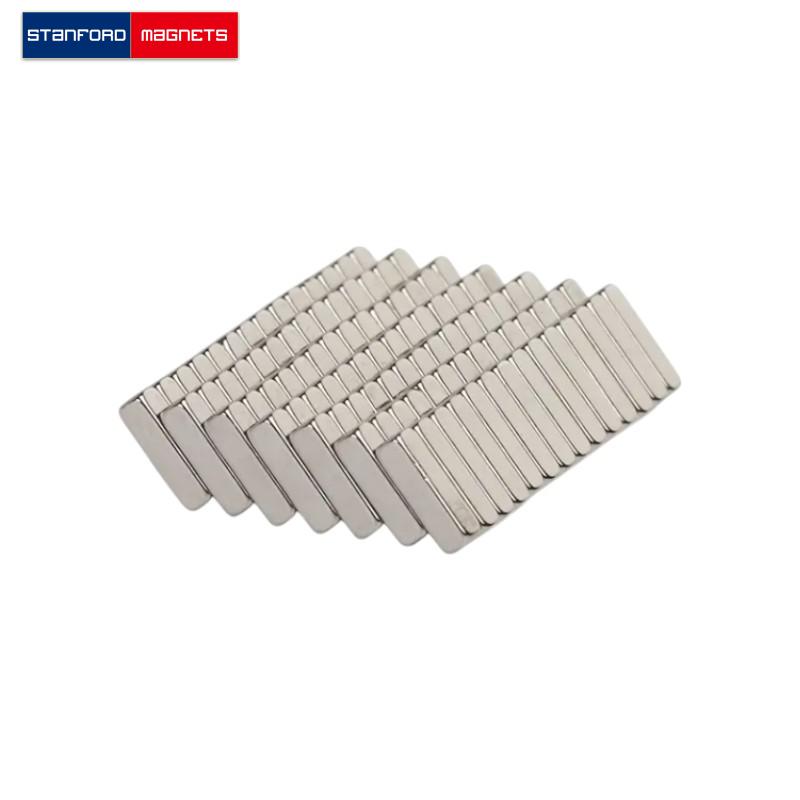

SMBN0575 Neodymium Block Magnet

Product ID: SMBN0575
Material: NdFeB
Shape: Block
Dimension: 2” x 1/4” x 1/16” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.14
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 5.16
Surface Field(Gauss): 1964
Magnetization Direction: Through Thickness
Magnetic Face: 2″ x 1/4″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0575 block neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 2″ × 1/4″ × 1/16″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0085 lbs. It can pull up to 5.16 lbs steel. And the surface field is up to 1964 gauss.
