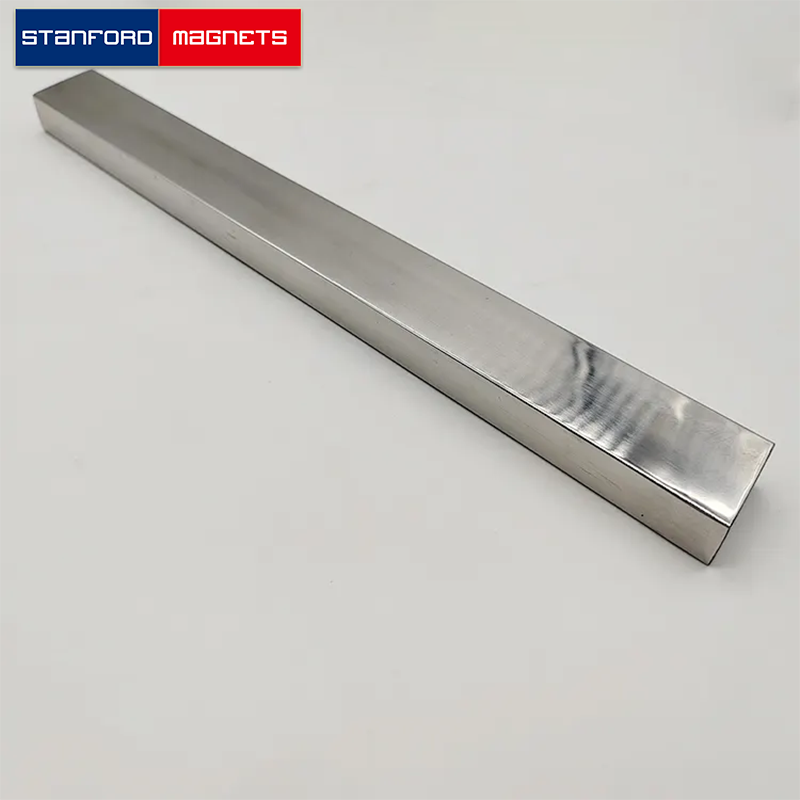

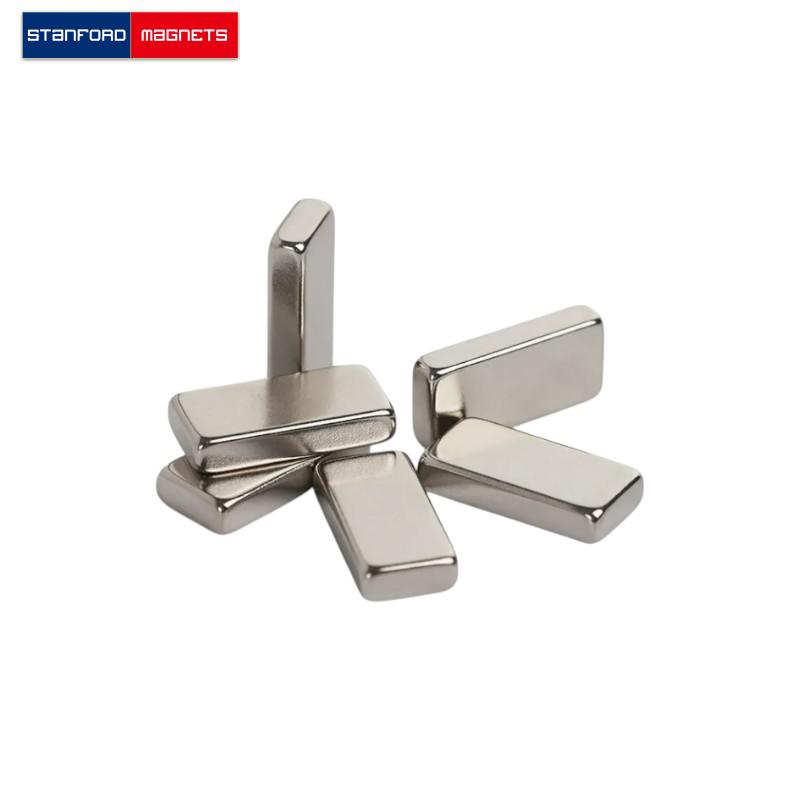

SMBN0577 Neodymium Block Magnet

Product ID: SMBN0577
Material: NdFeB
Shape: Block
Dimension: 2” x 1/4” x 1/8” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.27
Grade: 42SH
Coating: Nickel Coated Magnets
Pull Force(Lbs): 10.34
Surface Field(Gauss): 3332
Magnetization Direction: Through Thickness
Magnetic Face: 2″ x 1/4″
Max Operating Temp(C/F): 150/302

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0577 block neodymium magnet is made from high performance N42SH NdFeB, with Nickel coating. The dimension of this item is 2″ × 1/4″ × 1/8″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0169375 lbs. It can pull up to 10.34 lbs steel. And the surface field is up to 3332 gausses.
