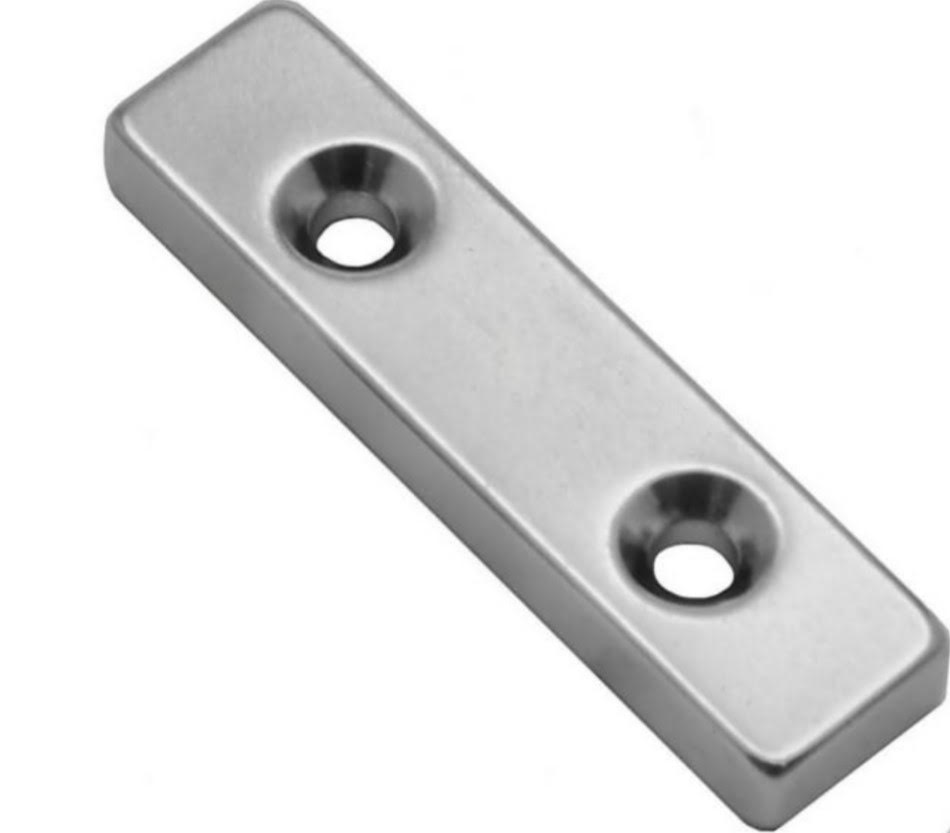

SMBN0586 Neodymium Countersunk Magnet

Product ID: SMBN0586
Material: NdFeB
Shape: Countersunk
Dimension: 2” x 1/2” x 1/4” thick w/ holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.97
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 27.95
Magnetization Direction: Through Thickness
Magnetic Face: 2″ x 1/2″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


The SMBN0586 countersunk neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 2″ × 1/2″ × 1/4″ thick w/ holes to accept #6 screws, magnetized through thickness, with a tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.060875 lbs. It can pull up to 27.95 lbs steel.
