SMBN0595 Neodymium Countersunk Magnet - Stanford Magnets

SMBN0595 Neodymium Countersunk Magnet

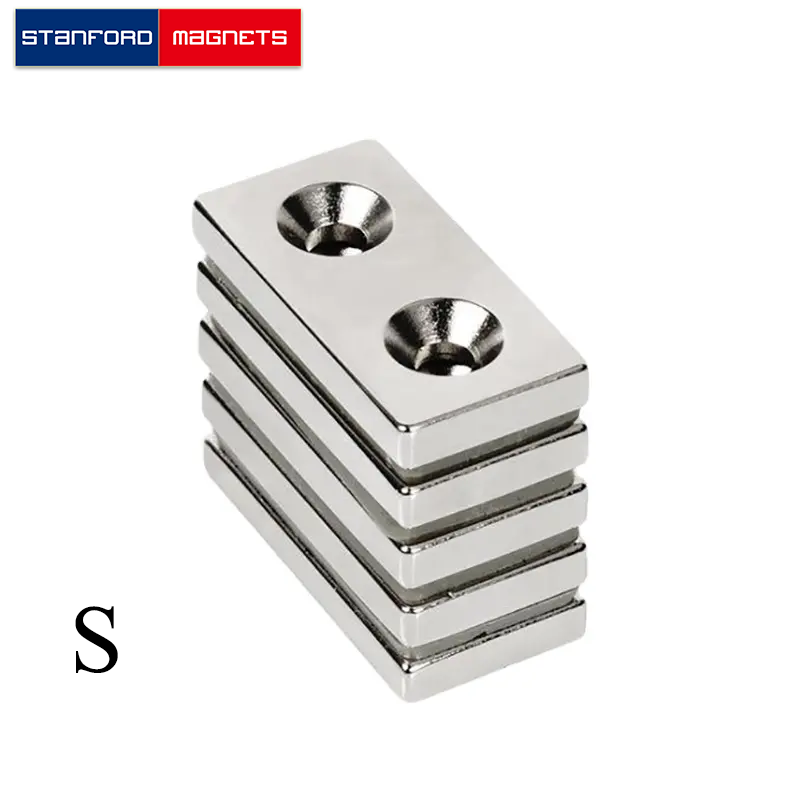

The SMBN0595 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 2″ × 1″ × 1/4″ thick w/ holes to accept #8 screws, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.125625 lbs. It can pull up to 34.34 lbs steel.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0595
Material: NdFeB
Shape: Countersunk
Dimension: 2” x 1” x 1/4” thick w/ holes to accept #8 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 2.01
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 34.34
Magnetization direction: Through Thickness
Magnetic Face: 2″ x 1″
Max Operating Temp(C/F): 80/176
