SMBN0602 Neodymium Block Magnet | Stanford Magnets

SMBN0602 Neodymium Block Magnet

Product ID: SMBN0602
Material: NdFeB
Shape: Block
Dimension: 2” x 1” x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 4.34
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 96.2
Surface Field(Gauss): 4174
Magnetization Direction: Through Thickness
Magnetic Face: 2″ x 1″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

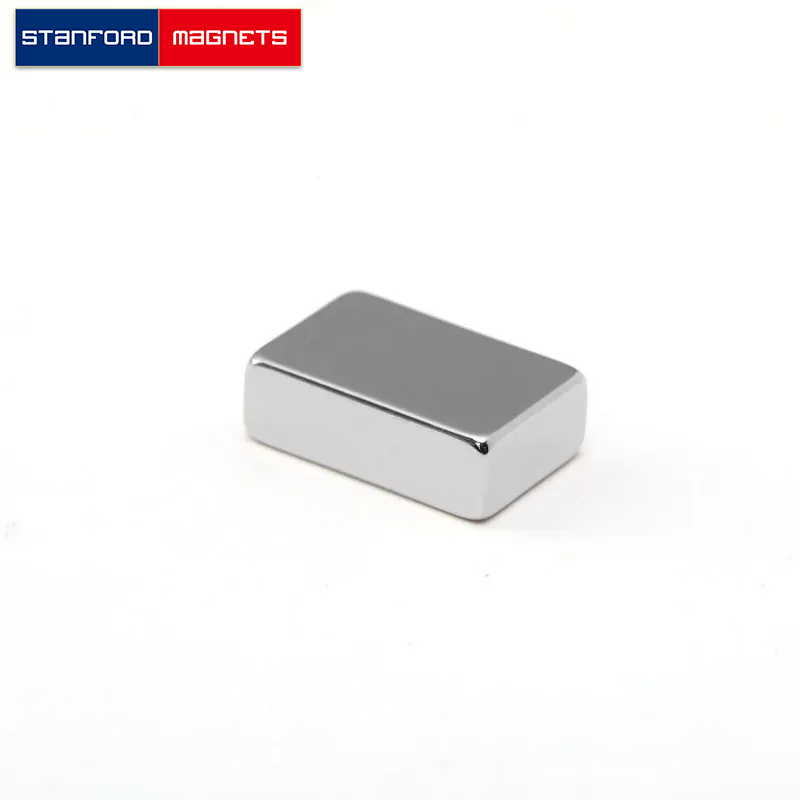

The SMBN0602 block neodymium magnet is made from high-performance N52 NdFeB, with Nickel coating. The dimension of this item is 2″ × 1″ × 1/2″ thick, magnetized through thickness, with a tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.27125 lbs. It can pull up to 96.2 lbs steel. And the surface field is up to 4174 gausses.
