SMBN0605 Neodymium Block Magnet

Product ID: SMBN0605
Material: NdFeB
Shape: Block
Dimension: 2” x 1” x 1” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 8.67
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 137.7
Surface Field(Gauss): 5248
Magnetization Direction: Through Thickness
Magnetic Face: 2″ x 1″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

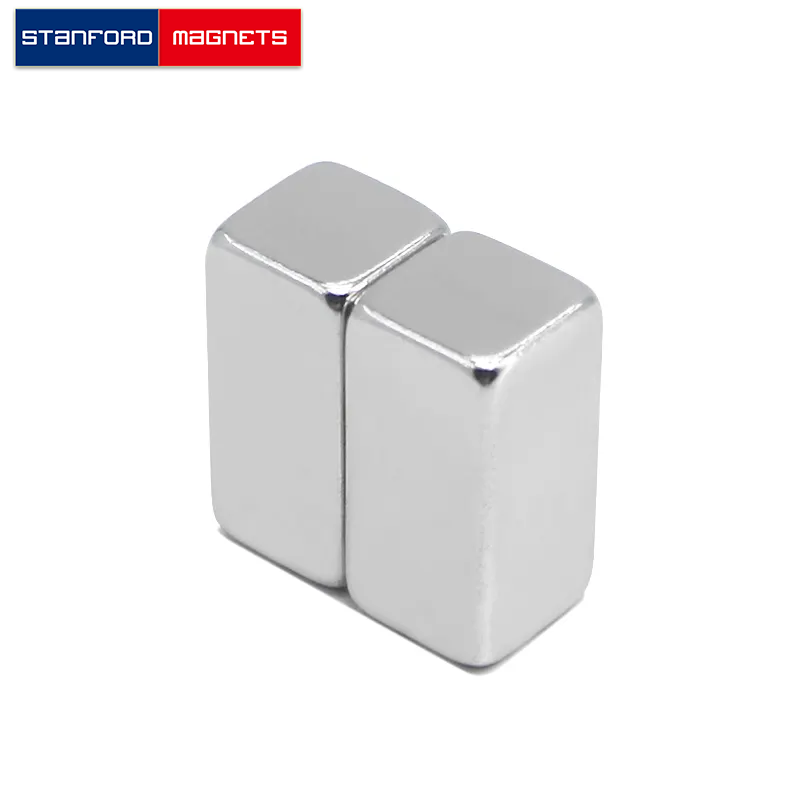

SMBN0605 Neodymium BLOCK Magnet Introduction

The SMBN0605 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 2″ × 1″ × 1″ thick, magnetized through thickness, with a tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.541875 lbs. It can pull up to 137.7 lbs steel. And the surface field is up to 5248 gausses.

SMBN0605 Neodymium BLOCK Magnet Safety Tips

The smbn0605 neodymium block magnet has a very strong attractive force. Unsafe handling could cause jamming of fingers or skin in between magnets. This may lead to contusions and bruises. You should always wear heavy protective gloves and eye protection when handling the smbn0605 neodymium block magnet.
Store the smbn0605 neodymium block magnet at least one meter away from your body.
Separate this item with a piece of cardboard.
