SMBN0608 Neodymium Blcok Magnet | Stanford Magnets

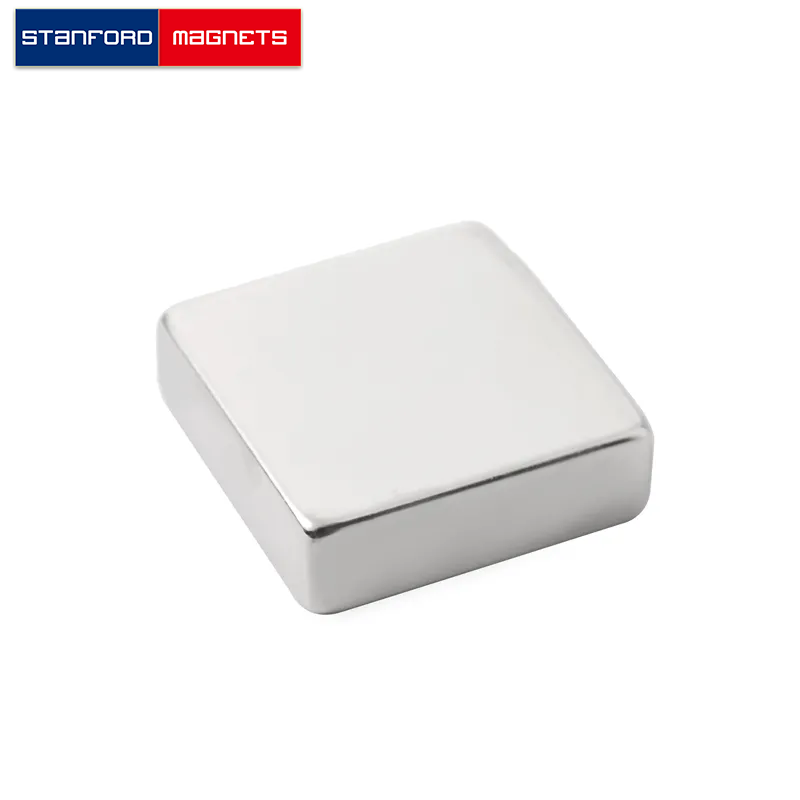

SMBN0608 Neodymium Blcok Magnet

Product ID: SMBN0608
Material: NdFeB
Shape: Block
Dimension: 2” x 2” x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 4.34
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 49.69
Surface Field(Gauss): 1448
Magnetization Direction: Through Thickness
Magnetic Face: 2″ x 2″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0608 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 2″ × 2″ × 1/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.27125 lbs. It can pull up to 49.69 lbs steel. And the surface field is up to 1448 gauss.
