SMBN0616 Neodymium Block Magnet

Product ID: SMBN0616

{{el.prop}}: {{el.options}}

DESCRIPTION

TECHNICAL DATA SHEET

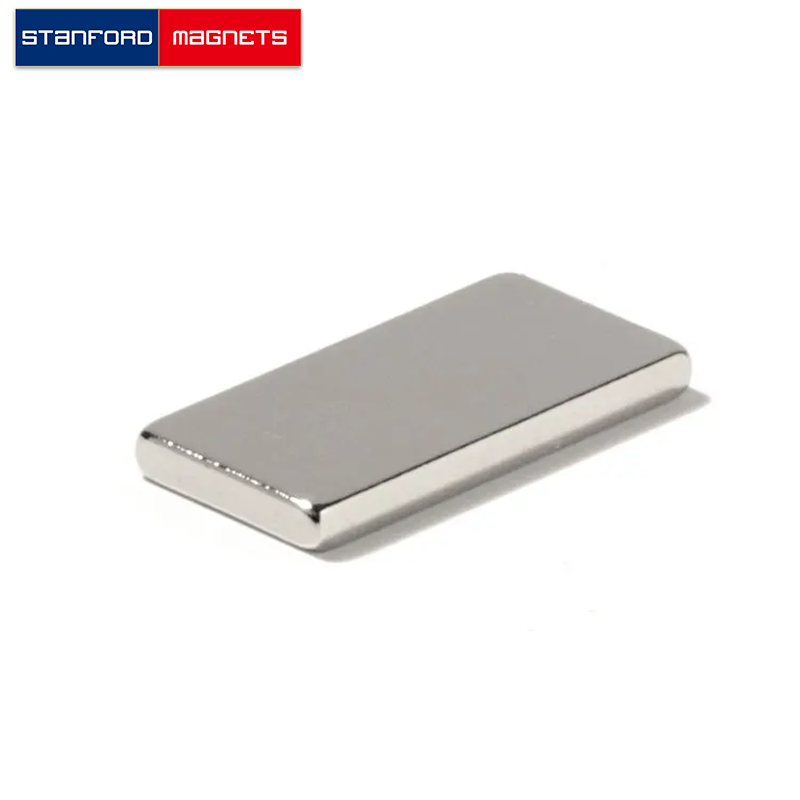

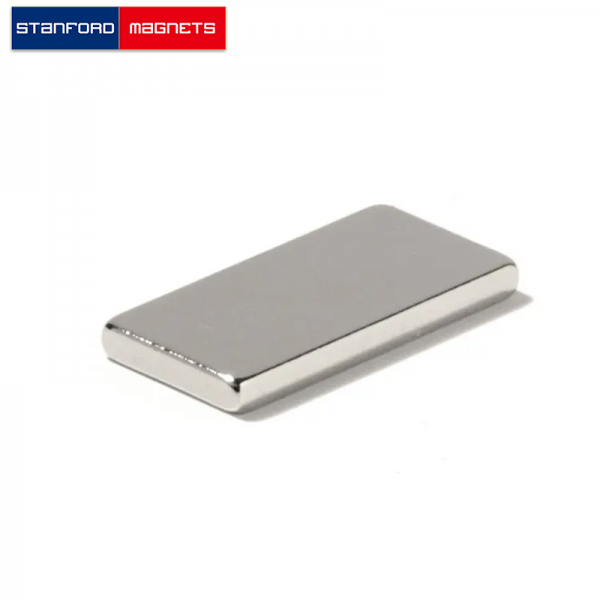

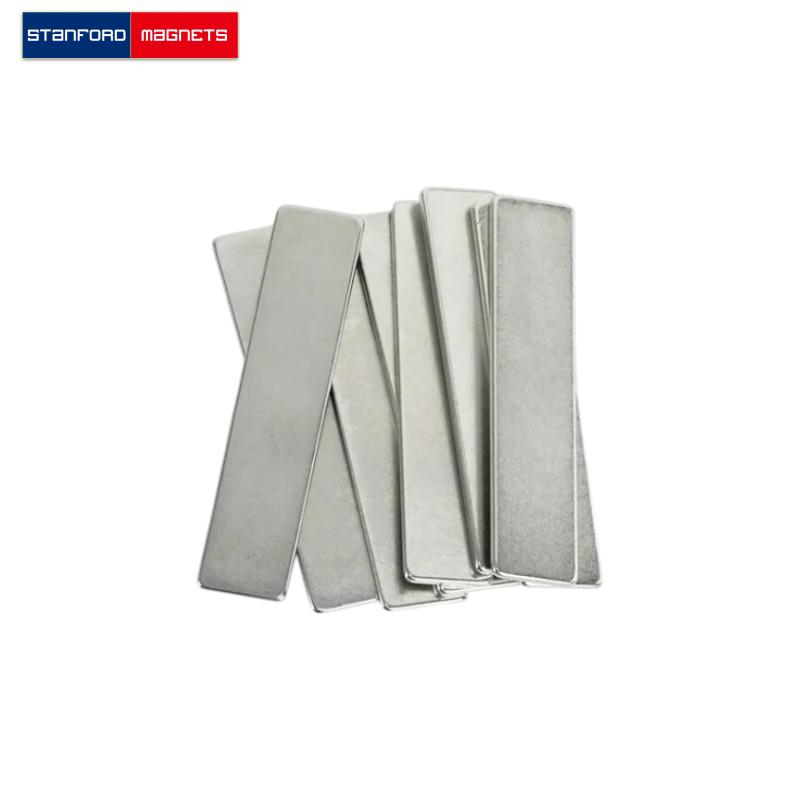

The SMBN0616 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3" × 1" × 1/8" thick, magnetized through thickness, with tolerance of ±0.004" × ±0.004" × ±0.004". The weight of this super strong neodymium magnet is 0.101875 lbs. It can pull up to 27.54 lbs steel. And the surface field is up to 1086 gauss.

Download a PDF Specification Sheet
