SMBN0618 Neodymium Block Magnet | Stanford Magnets

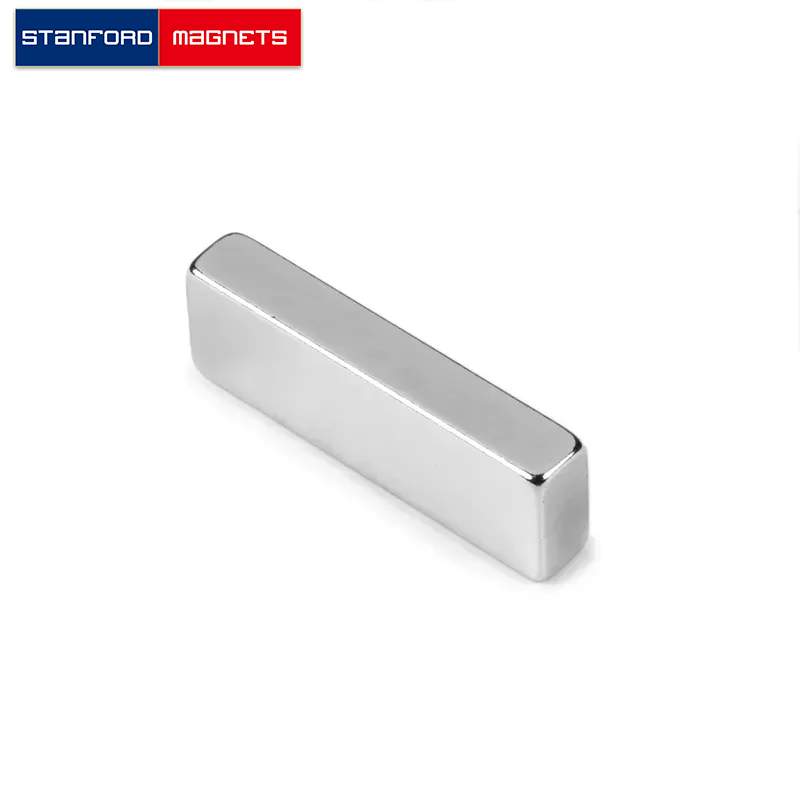

SMBN0618 Neodymium Block Magnet

Product ID: SMBN0618
Material: NdFeB
Shape: Block
Dimension: 3” x 1” x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 6.5
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 99.5
Surface Field(Gauss): 3510
Magnetization Direction: Through Thickness
Magnetic Face: 3″ x 1″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0618 block neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3″ × 1″ × 1/2″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.40625 lbs. It can pull up to 99.5 lbs steel. And the surface field is up to 3510 gausses.
