SMBN0620 Neodymium BLOCK Magnet | Stanford Magnets

Name: SMBN0620 Neodymium BLOCK Magnet
SKU: SMBN0620

SMBN0620 Neodymium BLOCK Magnet

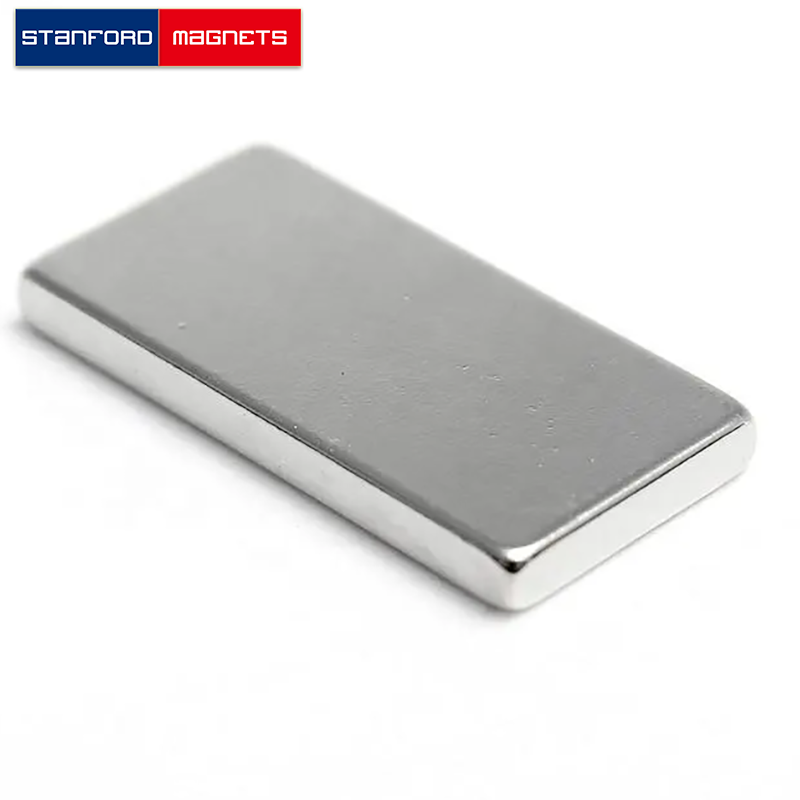

The SMBN0620 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3″ × 1 1/2″ × 1/4″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.305 lbs. It can pull up to 52.51 lbs steel. And the surface field is up to 1514 gauss.

INQUIRY Can't Find The Size

Follow Us On

Description

Description

Product ID: SMBN0620
Material: NdFeB
Shape: Block
Dimension: 3” x 1 1/2” x 1/4” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 4.88
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 52.51
Surface Field(Gauss): 1514
Magnetization direction: Through Thickness
Magnetic Face: 3″ x 1 1/2″
Max Operating Temp(C/F): 80/176
