SMBN0621 Neodymium BLOCK Magnet

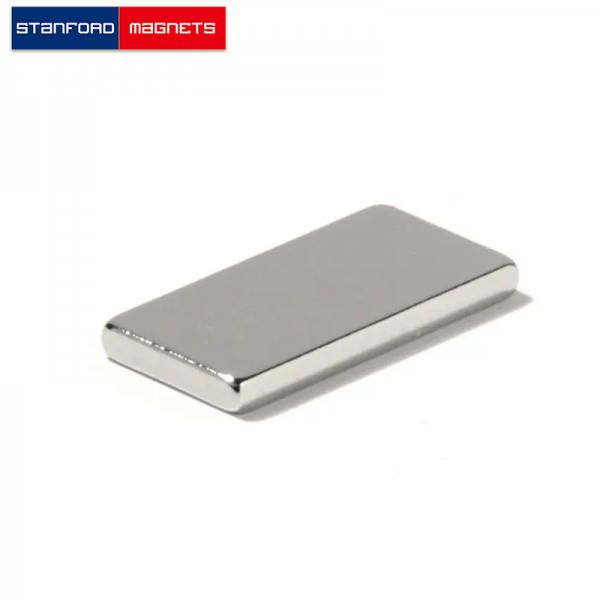

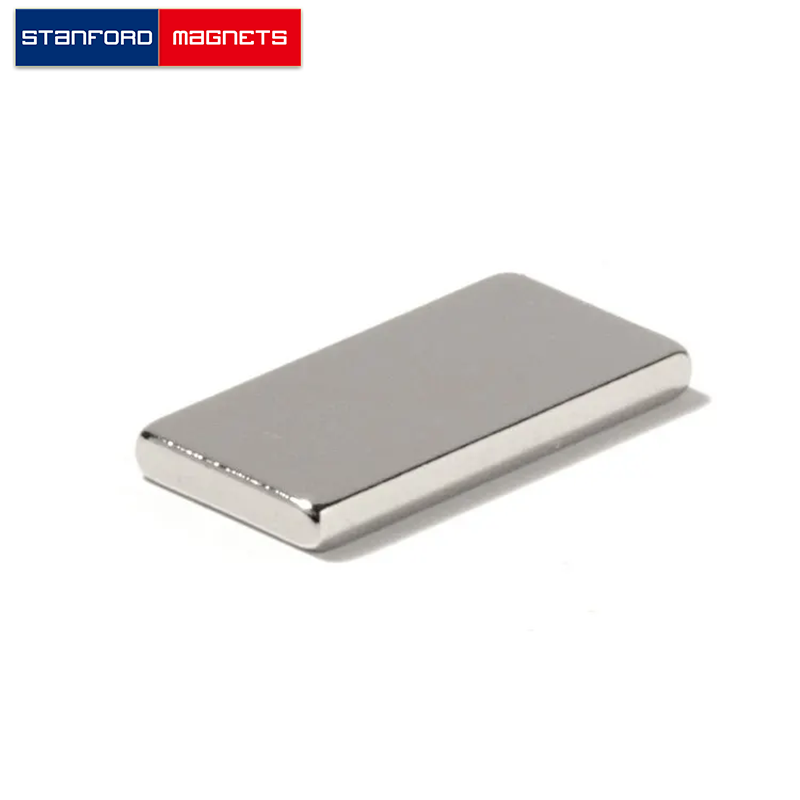

The SMBN0621 BLOCK neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3″ × 1 1/2″ × 1/2″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.61 lbs. It can pull up to 122.3 lbs steel. And the surface field is up to 2777 gauss.SMBN0621 Neodymium BLOCK Magnet Safety TipThe smbn0621 neodymium block magnet has a very strong attractive force. Unsafe handling could cause jamming of fingers or skin in between magnets. This may lead to contusions and bruises.You should always wear heavy protective gloves and eye protection when handling the smbn0621 neodymium block magnet.Store the smbn0621 neodymium block magnet at least one meter away from your body.Separate this item with a piece of cardboard.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMBN0621
Material: NdFeB
Shape: Block
Dimension: 3” x 1 1/2” x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 9.76
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 122.3
Surface Field(Gauss): 2777
Magnetization direction: Through Thickness
Magnetic Face: 3″ x 1 1/2″
Max Operating Temp(C/F): 80/176 SMBN0621 Neodymium BLOCK Magnet Safety Tip
The smbn0621 neodymium block magnet has a very strong attractive force. Unsafe handling could cause jamming of fingers or skin in between magnets. This may lead to contusions and bruises.

You should always wear heavy protective gloves and eye protection when handling the smbn0621 neodymium block magnet.
Store the smbn0621 neodymium block magnet at least one meter away from your body.
Separate this item with a piece of cardboard.
