SMBN0623 Neodymium Block Magnet | Stanford Magnets

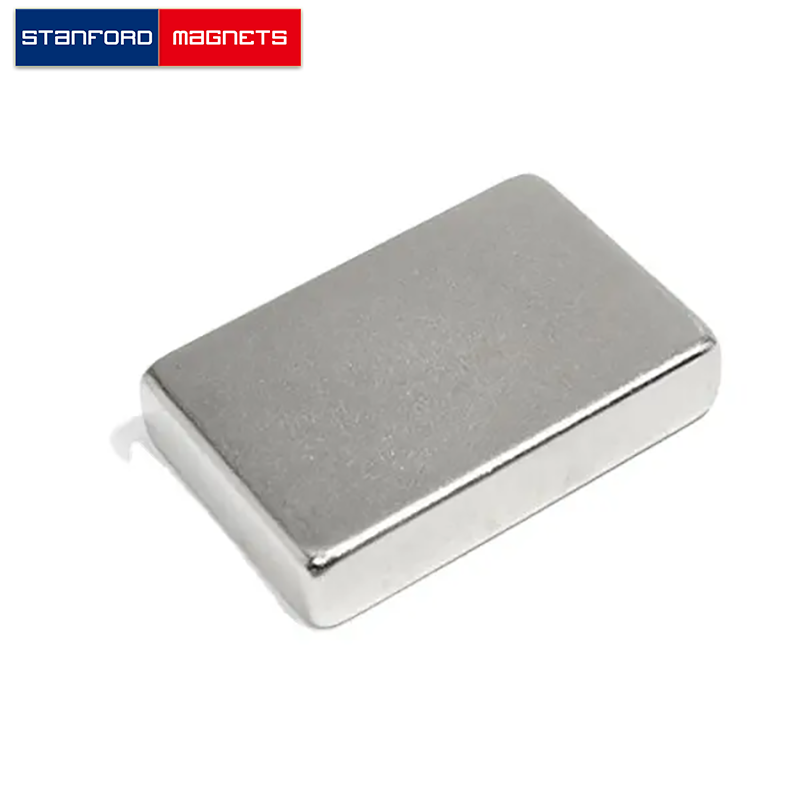

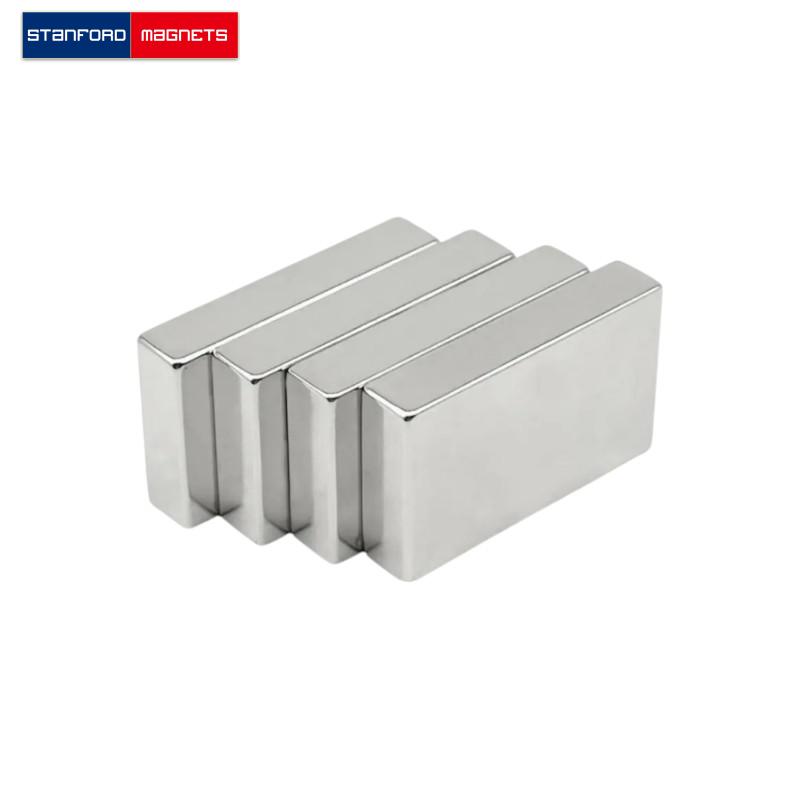

SMBN0623 Neodymium Block Magnet

Product ID: SMBN0623
Material: NdFeB
Shape: Block
Dimension: 3” x 2” x 1/2” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 13.01
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 171.5
Surface Field(Gauss): 2627
Magnetization Direction: Through Thickness
Magnetic Face: 3″ x 2″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMBN0623 block neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 3″ × 2″ × 1/2″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.813125 lbs. It can pull up to 171.5 lbs steel. And the surface field is up to 2627 gauss.
