SMBN0634 Neodymium Block Magnet

Product ID: SMBN0634
Material: NdFeB
Shape: Block
Dimension: 4” x 1” x 1” thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 17.3
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 257.3
Surface Field(Gauss): 4871
Magnetization Direction: Through Thickness
Magnetic Face: 4″ x 1″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

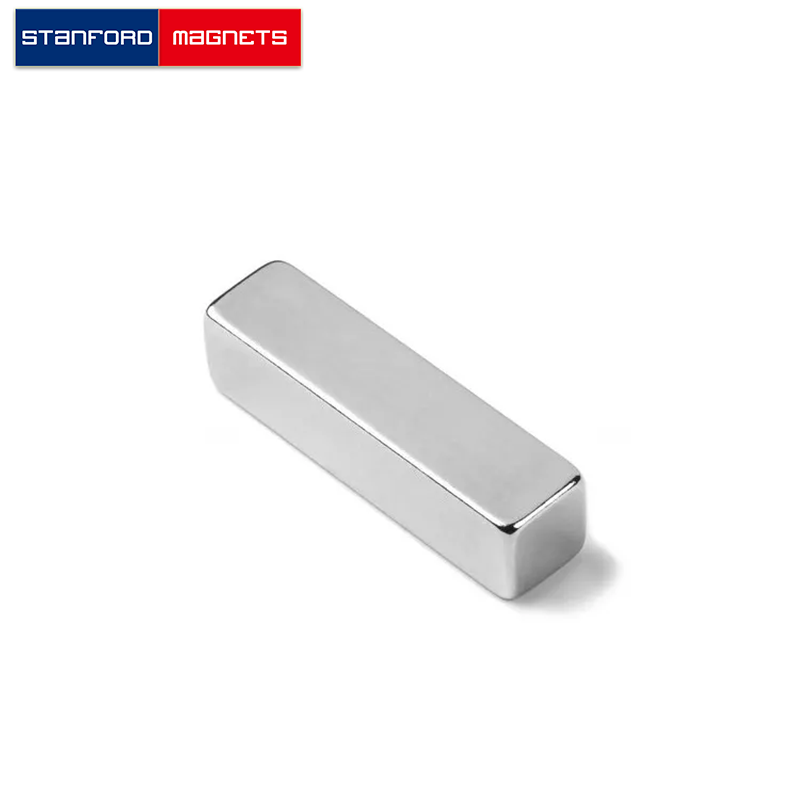

The SMBN0634 block neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 4″ × 1″ × 1″ thick, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 1.08125 lbs. It can pull up to 257.3 lbs steel. And the surface field is up to 4871 gauss.
