SMBX084BR-N52 Rubber Coated Magnets - Stanford Magnets

SMBX084BR-N52 Rubber Coated Magnets

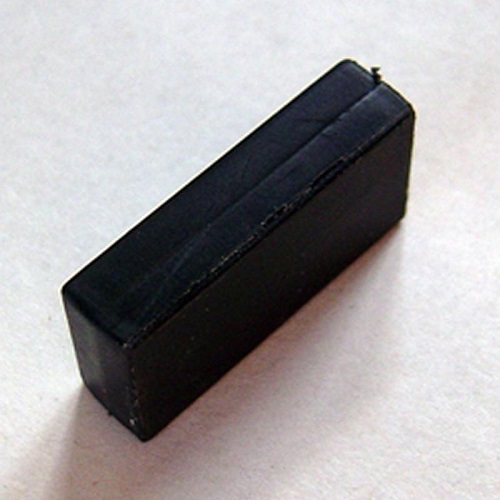

The SMBX084BR-N52 is coated with a durable layer of black rubber, very much like tire rubber. The 1″ x 1/2″ x 1/4″ dimensions are the finished dimensions of the rubber coating, which protects the magnet from impact damage and corrosion.

These blocks can be slammed together many times without damage, overcoming one of the greatest weaknesses of neodymium magnets – fragility. The rubber coating is very water resistant, but not recommended for underwater use, as the rubber seal is not guaranteed waterproof.

INQUIRY Can't Find The Size

Follow Us On


Description

Dimensions: 1″ x 1/2″ x 1/4″ thick
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Material: NdFeB, Grade N52
Plating/Coating: Black Rubber Coated
Magnetization Direction: Thru Thickness
Weight: 0.381 oz. (10.8 g)
Pull Force, Case 1: 12.28 lbs
Pull Force, Case 2: 25.85 lbs
Surface Field: 4174 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe
