SMCN0253 Neodymium Cylinder Magnet | Stanford Magnets

SMCN0253 Neodymium Cylinder Magnet

Product ID: SMCN0253
Material: NdFeB
Shape: Cylinder
Dimension: 1/16” dia. x 1/16” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.00083
Grade: N42SH
Coating: Nickel Coated Magnets
Pull Force(Lbs): 0.1
Surface Field(Gauss): 5903
Magnetization Direction: Through Thickness
Magnetic Face: 1/16″ dia.
Max Operating Temp(C/F): 150/302

INQUIRY Can't Find The Size

Follow Us On

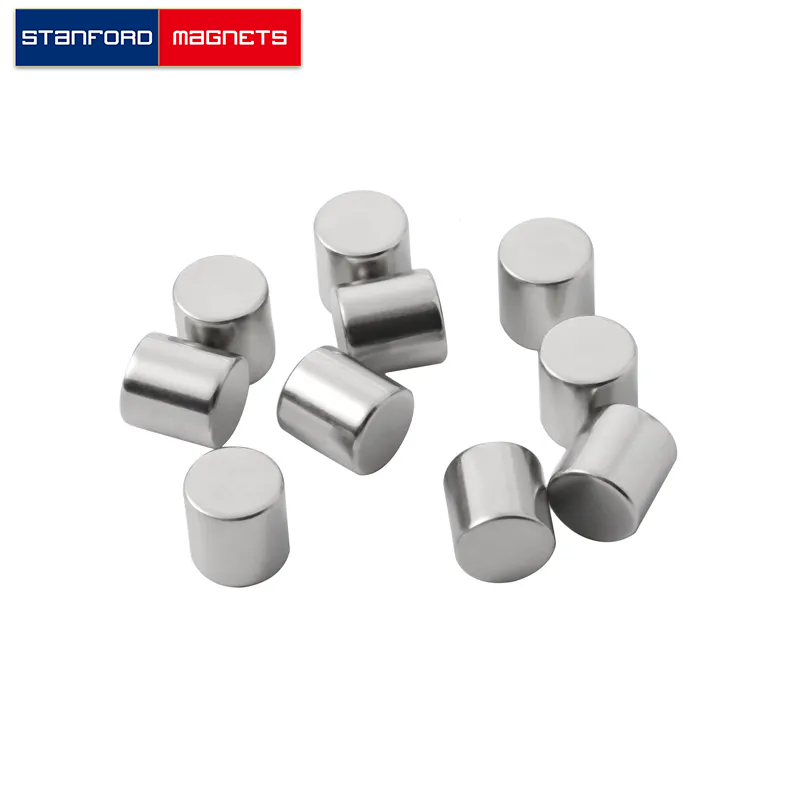

SMCN0253 Neodymium Cylinder Magnet Introduction

The SMCN0253 cylinder neodymium magnet is made from high-performance N42SH NdFeB, with Nickel coating. The dimension of this item is 1/16″ dia. × 1/16″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0000519375 lbs.

It can pull up to 0.1 lbs steel. And the surface field is up to 5903 gauss.

SMCN0253 Neodymium Cylinder Magnet Safety Tips

The smcn0253 neodymium cylinder magnet is so small that Children could swallow it easily. If several magnets are swallowed, they could get stuck in the intestine and cause perilous complications. Magnets are not toys. Make sure that children do not play with the smcn0253 neodymium cylinder magnet.

The smcn0253 neodymium cylinder magnet could also be used as like push pins and fridge magnets. Keep track of all rare earth magnets in a home, not just those located in toys.
