SMCN0270 Neodymium CYLINDER Magnet | Stanford Magnets

SMCN0270 Neodymium CYLINDER Magnet

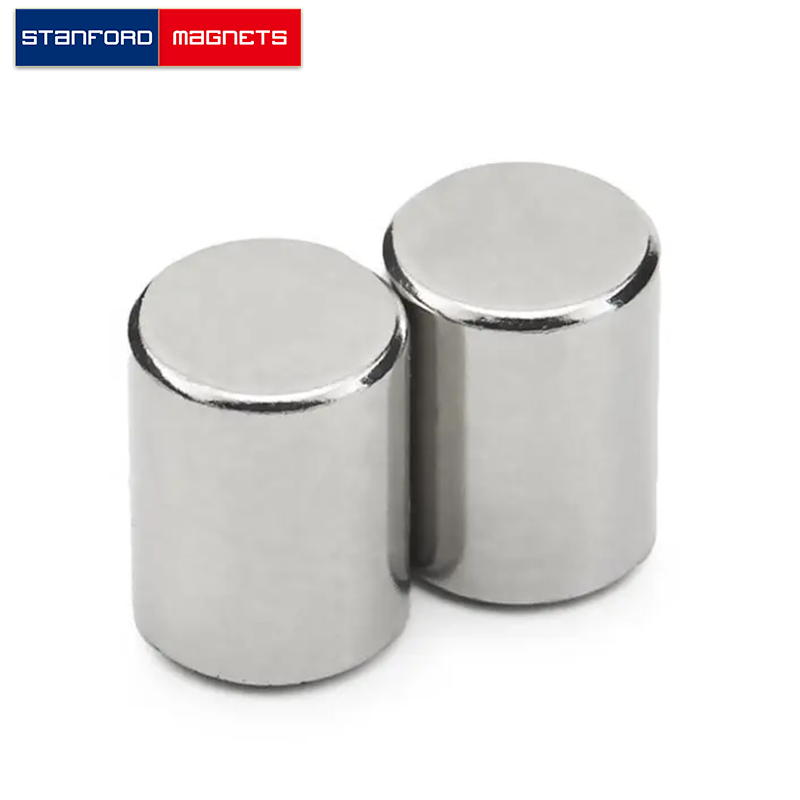

The SMCN0270 CYLINDER neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/8″ dia. × 3/16″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.000625 lbs. It can pull up to 0.78 lbs steel. And the surface field is up to 6261 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMCN0270
Material: NdFeB
Shape: Cylinder
Dimension: 1/8” dia. x 3/16” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.01
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 0.78
Surface Field(Gauss): 6261
Magnetization direction: Through Thickness
Magnetic Face: 1/8″ dia.
Max Operating Temp(C/F): 80/176 SMCN0270 Neodymium CYLINDER Magnet Safety Tips
The smcn0270 neodymium cylinder magnet is so small that Children could swallow it easily. If several magnets are swallowed, they could get stuck in the intestine and cause perilous complications.

Magnets are not toys. Make sure that children do not play with the smcn0270 neodymium cylinder magnet.
The smcn0270 neodymium cylinder magnet could also be used as like push pins and fridge magnets. keep track of all rare earth magnets in a home, not just those located in toys.
