SMCN0286 Neodymium Cylinder Magnet | Stanford Magnets

SMCN0286 Neodymium Cylinder Magnet

Product ID: SMCN0286
Material: NdFeB
Shape: Cylinder
Dimension: 3/16” dia. x 2/10” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.024
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 1.87
Surface Field(Gauss): 5976
Magnetization Direction: Through Thickness
Magnetic Face: 3/16″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

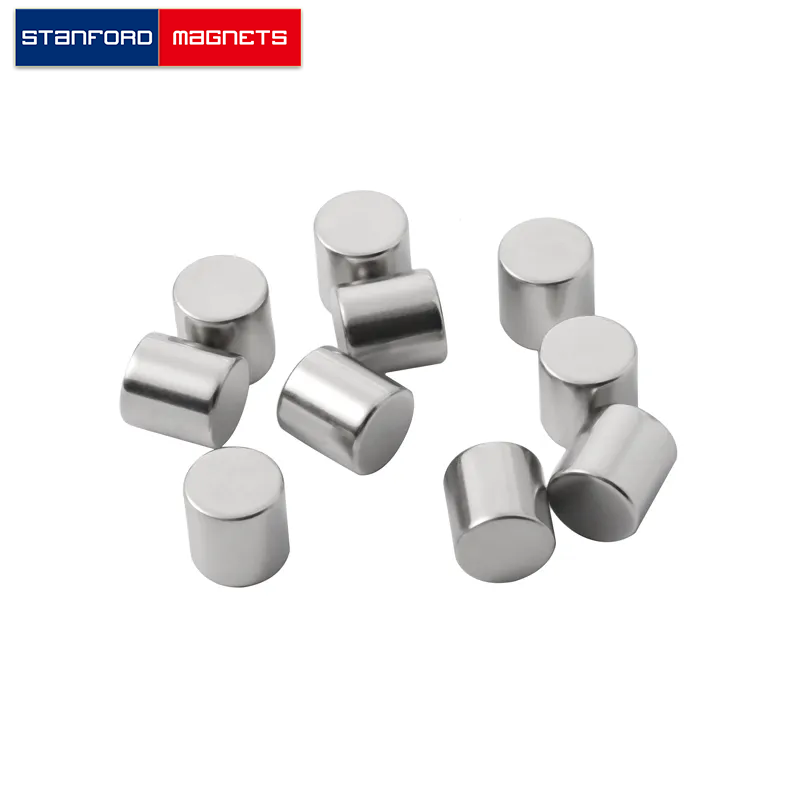

The SMCN0286 cylinder neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/16″ dia. × 2/10″ thick, magnetized through thickness, with a tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0015 lbs. It can pull up to 1.87 lbs steel. And the surface field is up to 5976 gausses.
