SMCN0295 Neodymium Cylinder Magnet | Stanford Magnets

SMCN0295 Neodymium Cylinder Magnet

Product ID: SMCN0295
Material: NdFeB
Shape: Cylinder
Dimension: 3/16” dia. x 1 1/2” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.18
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 2.26
Surface Field(Gauss): 6587
Magnetization Direction: Through Thickness
Magnetic Face: 3/16″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

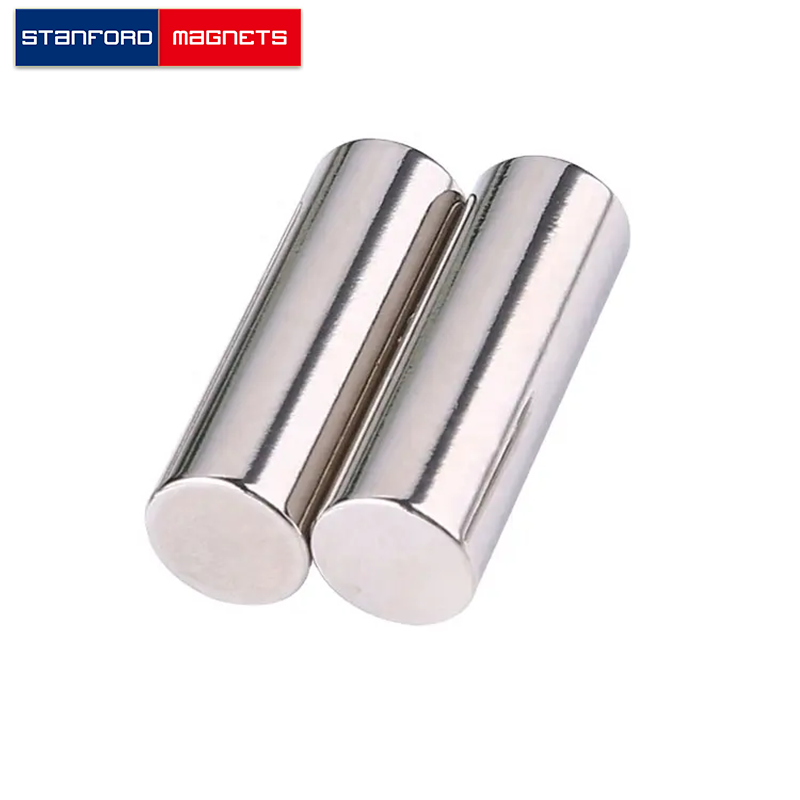

The SMCN0295 cylinder neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/16″ dia. × 1 1/2″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.01125 lbs. It can pull up to 2.26 lbs steel. And the surface field is up to 6587 gausses.
