SMCN0311 Neodymium Cylinder Magnet | Stanford Magnets

SMCN0311 Neodymium Cylinder Magnet

Product ID: SMCN0311
Material: NdFeB
Shape: Cylinder
Dimension: 1/4” dia. x 7/8” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.19
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 4.09
Surface Field(Gauss): 6534
Magnetization Direction: Through Thickness
Magnetic Face: 1/4″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

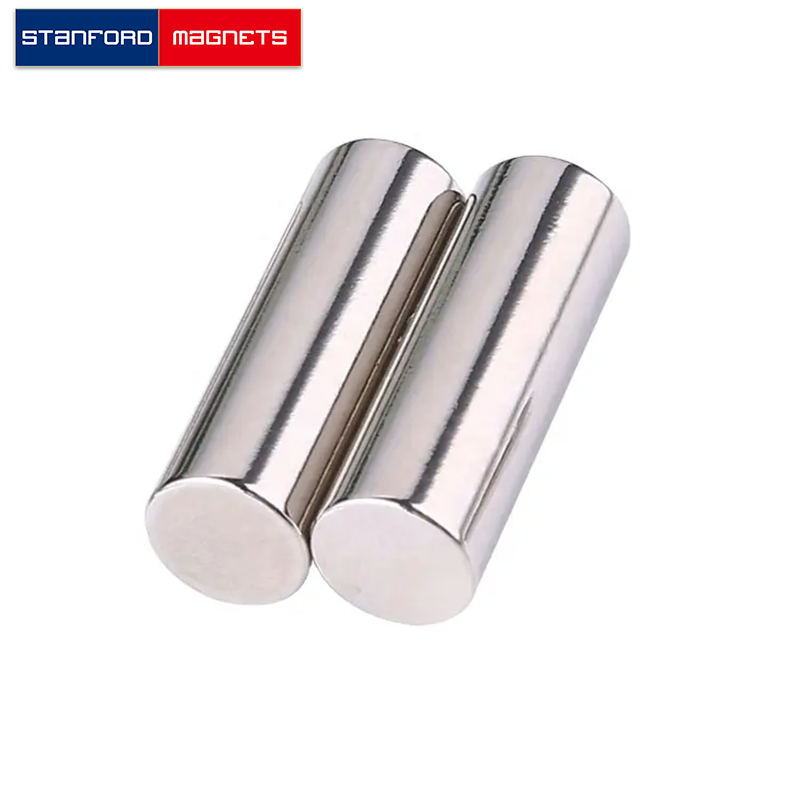

The SMCN0311 cylinder neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/4″ dia. × 7/8″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.011625 lbs. It can pull up to 4.09 lbs steel. And the surface field is up to 6534 gausses.
