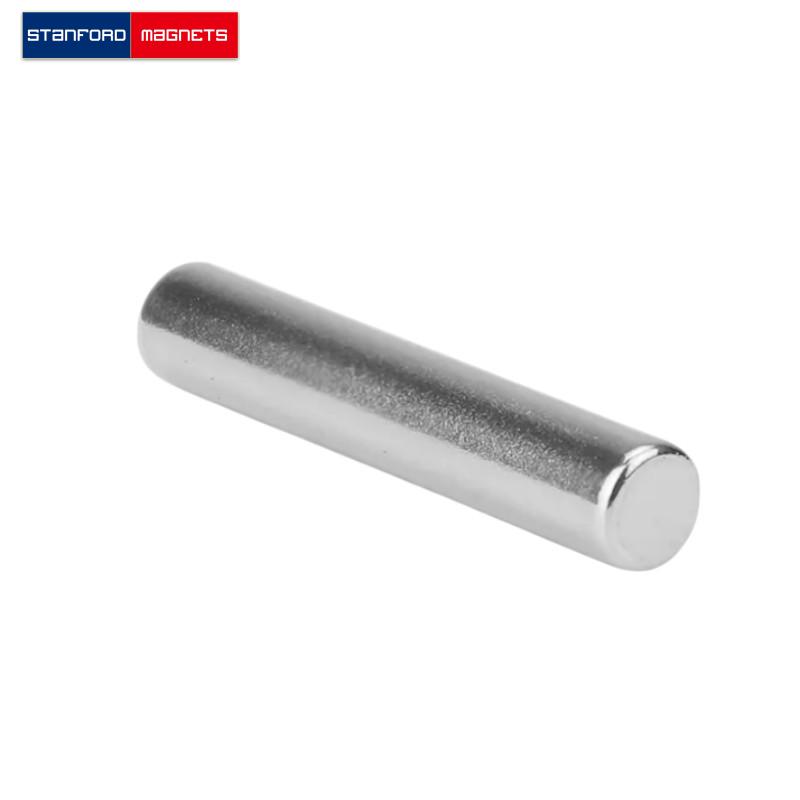

SMCN0337 Neodymium CYLINDER Magnet - Stanford Magnets

SMCN0337 Neodymium CYLINDER Magnet

The SMCN0337 CYLINDER neodymium magnet is made from high performance N52 NdFeB, with Nickel coating. The dimension of this item is 7/16″ dia. × 7/16″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0178125 lbs. It can pull up to 13.77 lbs steel. And the surface field is up to 6619 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMCN0337
Material: NdFeB
Shape: Cylinder
Dimension: 7/16” dia. x 7/16” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.29
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 13.77
Surface Field(Gauss): 6619
Magnetization direction: Through Thickness
Magnetic Face: 7/16″ dia.
Max Operating Temp(C/F): 80/176
