SMCN0349 Neodymium CYLINDER Magnet - Stanford Magnets

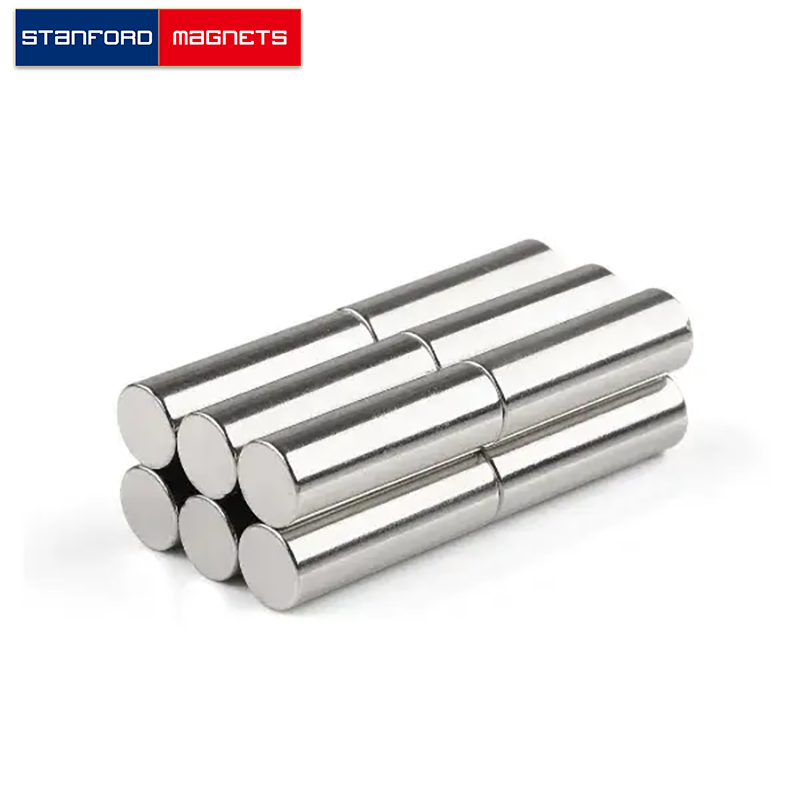

SMCN0349 Neodymium CYLINDER Magnet

The SMCN0349 CYLINDER neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1/2″ dia. × 2″ thick, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.10625 lbs. It can pull up to 17 lbs steel. And the surface field is up to 6549 gauss.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMCN0349
Material: NdFeB
Shape: Cylinder
Dimension: 1/2” dia. x 2” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 1.7
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 17
Surface Field(Gauss): 6549
Magnetization direction: Through Thickness
Magnetic Face: 1/2″ dia.
Max Operating Temp(C/F): 80/176
