SMCN0357 Neodymium Cylinder Magnet

Product ID: SMCN0357
Material: NdFeB
Shape: Cylinder
Dimension: 5/8” dia. x 3/4” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 1
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 25.1
Surface Field(Gauss): 6092
Magnetization Direction: Through Thickness
Magnetic Face: 5/8″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

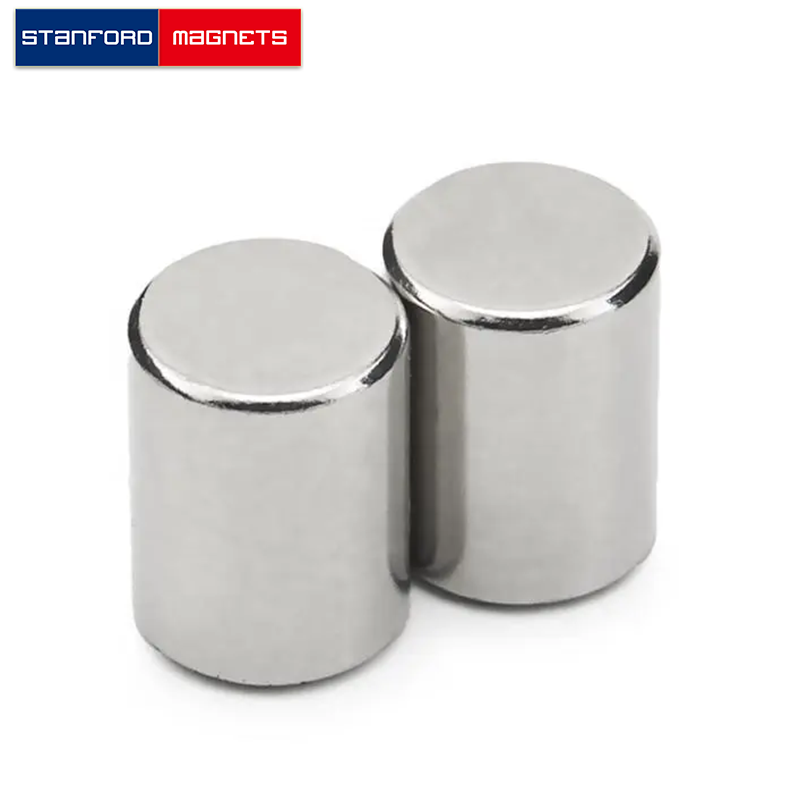

The SMCN0357 cylinder neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 5/8″ dia. × 3/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.062375 lbs. It can pull up to 25.1 lbs steel. And the surface field is up to 6092 gausses.
