SMCN0360 Neodymium CYLINDER Magnet

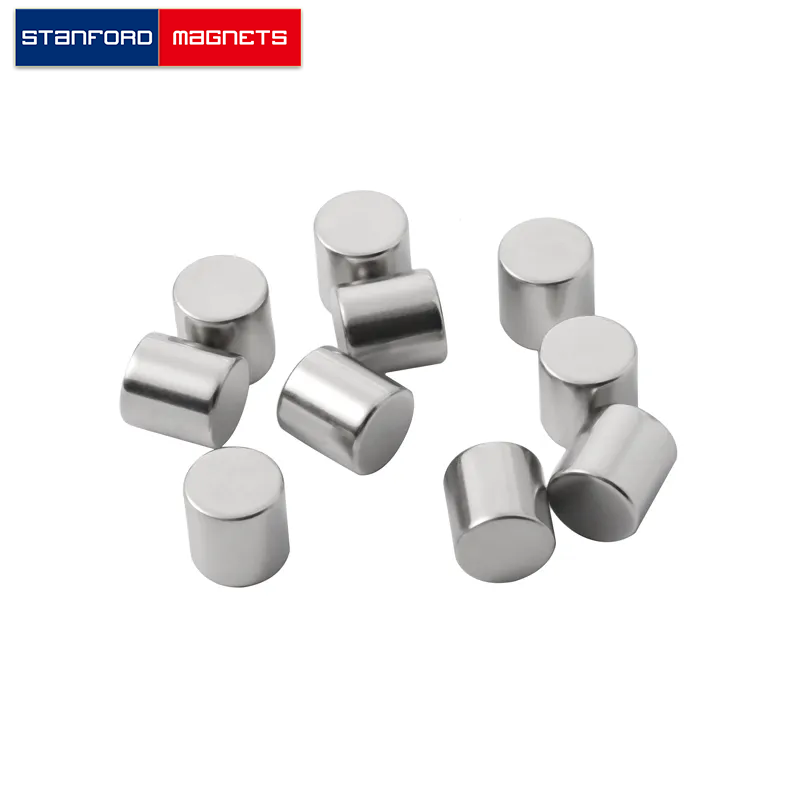

The SMCN0360 CYLINDER neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ dia. × 3/4″ thick, magnetized Diametrical, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.09 lbs. It can pull up to 25.54 lbs steel. And the surface field is up to 7220 gauss.

INQUIRY Can't Find The Size

Follow Us On


Product ID: SMCN0360
Material: NdFeB
Shape: Cylinder
Dimension: 3/4” dia. x 3/4” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 1.44
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 25.54
Surface Field(Gauss): 7220
Magnetization direction: Diametrical
Max Operating Temp(C/F): 80/176
