SMCN0361 Neodymium Cylinder Magnet

Product ID: SMCN0361
Material: NdFeB
Shape: Cylinder
Dimension: 3/4” dia. x 3/4” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 1.44
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 40.24
Surface Field(Gauss): 6619
Magnetization Direction: Through Thickness
Magnetic Face: 3/4″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

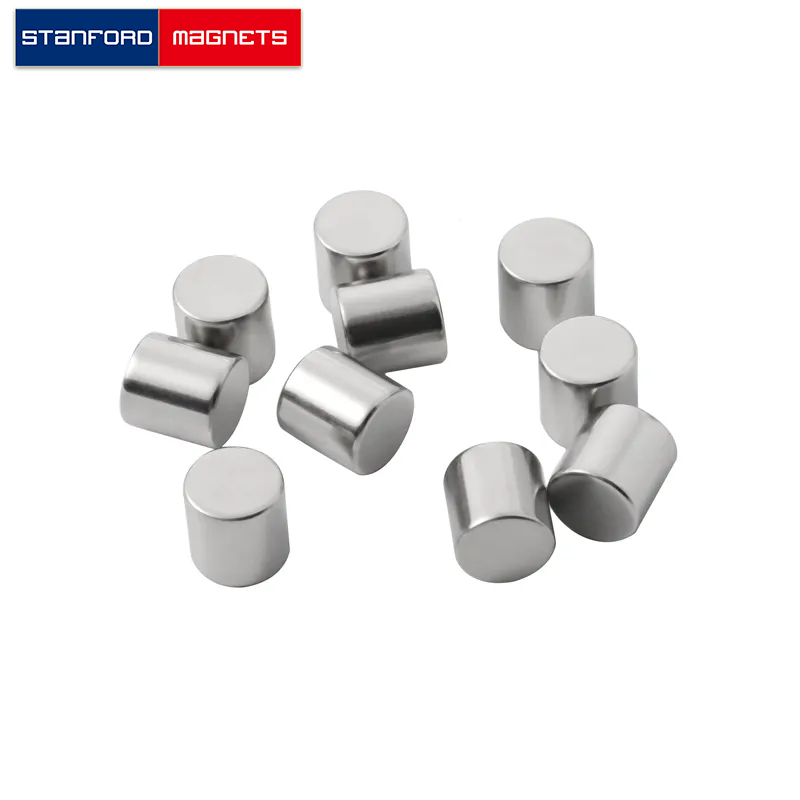

The SMCN0361 cylinder neodymium magnet is made from high-performance N52 NdFeB, with Nickel coating. The dimension of this item is 3/4″ dia. × 3/4″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.09 lbs. It can pull up to 40.24 lbs steel. And the surface field is up to 6619 gausses.
