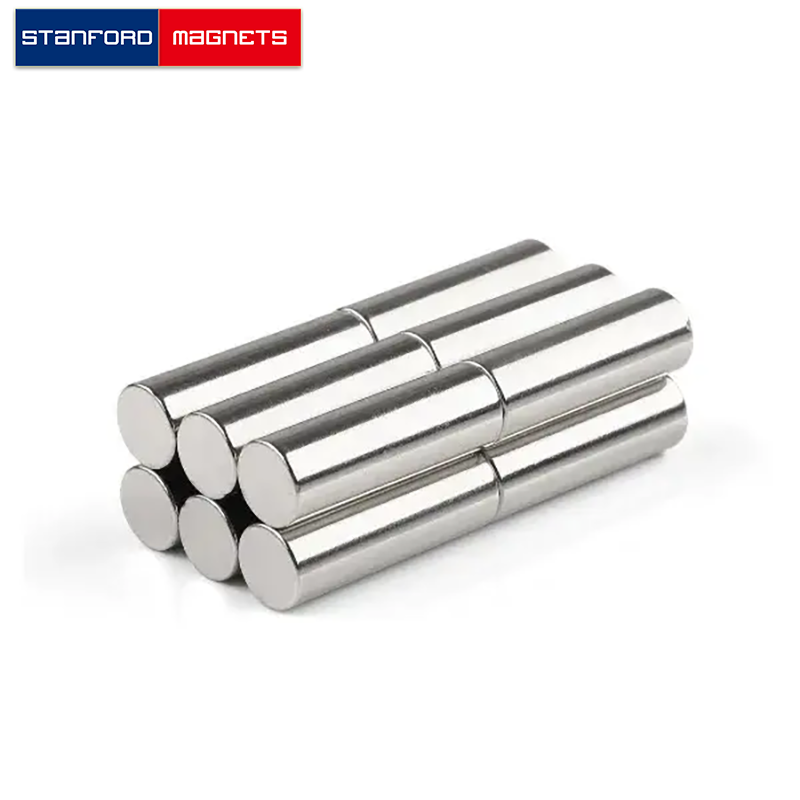

SMCN0372 Neodymium Cylinder Magnet

Product ID: SMCN0372
Material: NdFeB
Shape: Cylinder
Dimension: 1” dia. x 1 1/2” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 5.11
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 66
Surface Field(Gauss): 6261
Magnetization Direction: Through Thickness
Magnetic Face: 1″ dia.
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

The SMCN0372 cylinder neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ dia. × 1 1/2″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.319375 lbs. It can pull up to 66 lbs steel. And the surface field is up to 6261 gausses.
