SMCN0376 Neodymium Cylinder Magnet | Stanford Magnets

SMCN0376 Neodymium Cylinder Magnet

Product ID: SMCN0376
Material: NdFeB
Shape: Cylinder
Dimension: 2” dia. x 2” thick
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 27.2
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 305
Surface Field(Gauss): 5903
Magnetization Direction: Through Thickness
Magnetic Face: 2″ dia.
Max Operating Temp(C/F): 80/176

This may lead to contusions and bruises.You should always wear heavy protective gloves and eye protection when handling the smcn0376 neodymium cylinder magnet.Store the smcn0376 neodymium cylinder magnet at least one meter away from your body.Separate this item with a piece of cardboard.

INQUIRY Can't Find The Size

Follow Us On

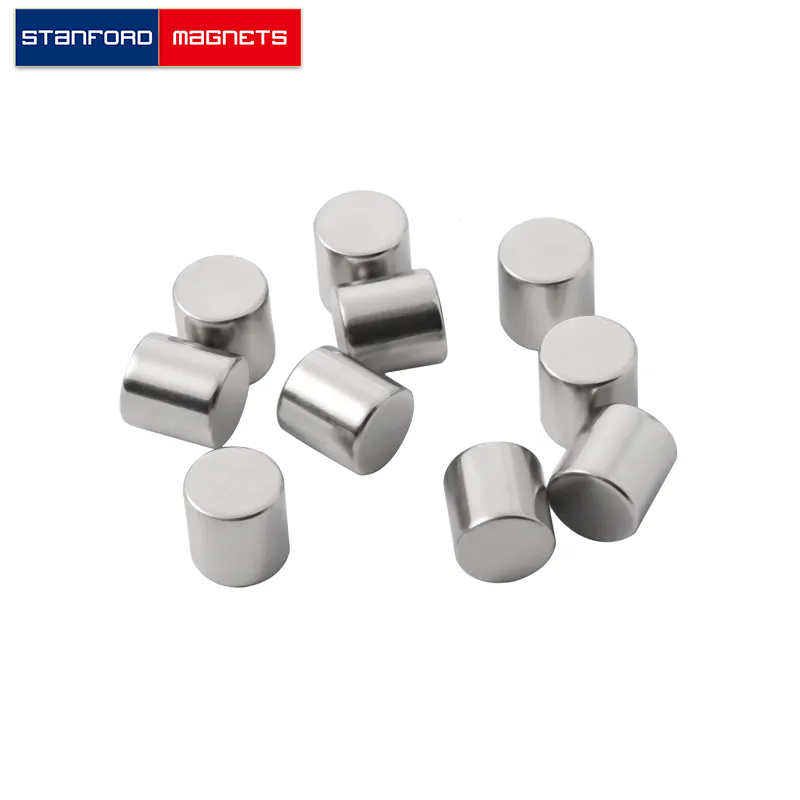

SMCN0376 Neodymium Cylinder Magnet Introduction

The SMCN0376 cylinder neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 2″ dia. × 2″ thick, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 1.7 lbs. It can pull up to 305 lbs steel. And the surface field is up to 5903 gausses.

SMCN0376 Neodymium Cylinder Magnet Safety Tips

The smcn0376 neodymium cylinder magnet has a very strong attractive force. Unsafe handling could cause jamming of fingers or skin in between magnets.
