Name: SMCN0754 Neodymium Countersunk Magnet
SKU: SMCN0754

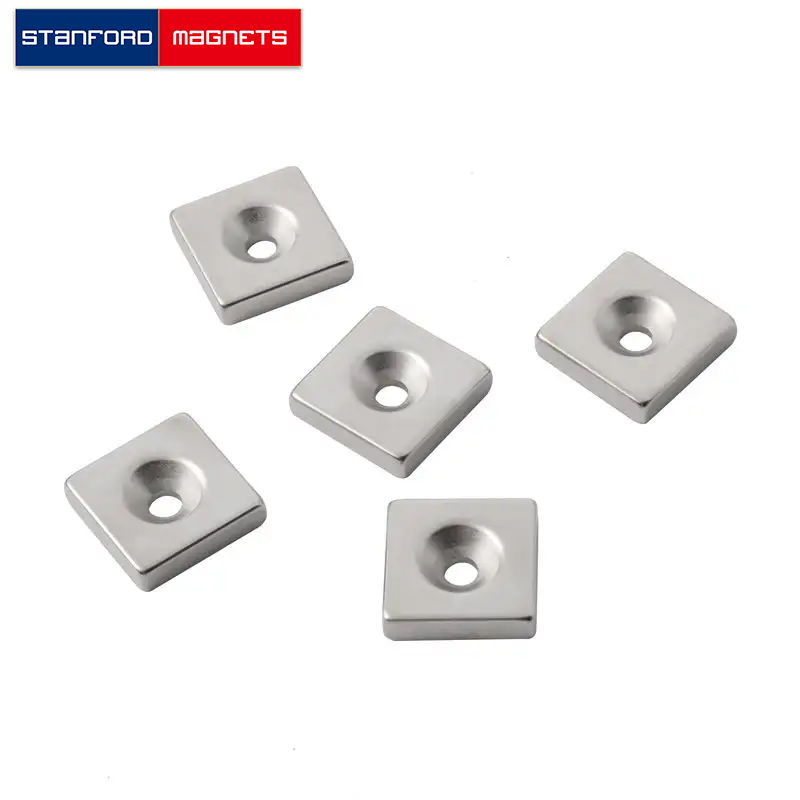

SMCN0754 Neodymium Countersunk Magnet

The SMCN0754 Countersunk neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ × 3/4″ × 1/4″ thick w/ countersunk hole to accept #6 screw, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.03575 lbs. It can pull up to 19.26 lbs steel.

INQUIRY Can't Find The Size

Follow Us On

Description

Description

Product ID: SMCN0754
Material: NdFeB
Shape: Countersunk
Dimension: 3/4” x 3/4” x 1/4” thick w/ countersunk hole to accept #6 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.57
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 19.26
Magnetization direction: Through Thickness
Magnetic Face: 3/4″ x 3/4″
Max Operating Temp(C/F): 80/176
