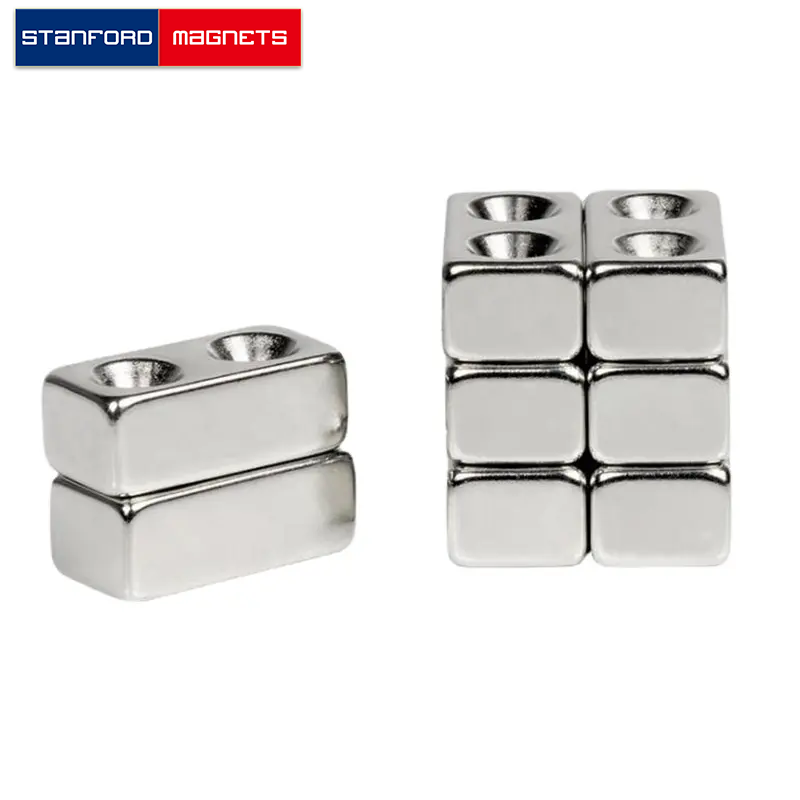

SMCN0758 Neodymium Countersunk Magnet

Product ID: SMCN0758
Material: NdFeB
Shape: Countersunk
Dimension: 1” x 1/2” x 1/2” thick w/ countersunk holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.96
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 26.74
Magnetization Direction: Through Thickness
Magnetic Face: 1″ x 1/2″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


The SMCN0758 countersunk neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ × 1/2″ × 1/2″ thick w/ countersunk holes to accept #6 screws, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.06 lbs. It can pull up to 26.74 lbs steel.
