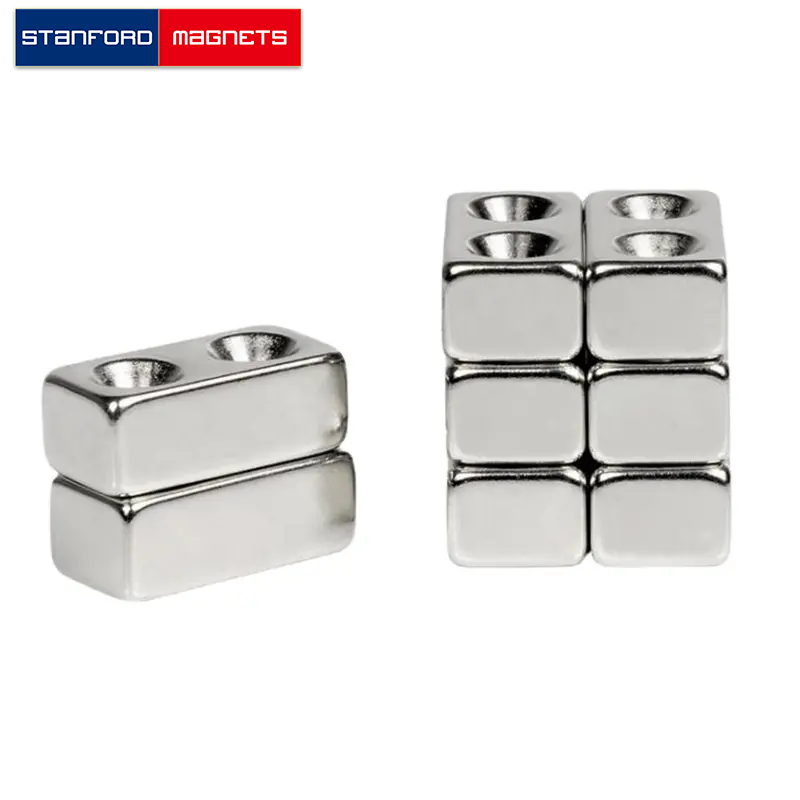

SMCN0762 Neodymium Countersunk Magnet

The SMCN0762 Countersunk neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 1 1/2″ × 1/2″ × 1/4″ thick w/ holes to accept #6 screws, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0439375 lbs. It can pull up to 23.99 lbs steel.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMCN0762
Material: NdFeB
Shape: Countersunk
Dimension: 1 1/2” x 1/2” x 1/4” thick w/ holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.7
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 23.99
Magnetization direction: Through Thickness
Magnetic Face: 1 1/2″
Max Operating Temp(C/F): 80/176
