SMCN0763 Neodymium Countersunk Magnet | Stanford Magnets

SMCN0763 Neodymium Countersunk Magnet

Product ID: SMCN0763
Material: NdFeB
Shape: Countersunk
Dimension: 1 1/2” x 3/4” x 3/8” thick w/ holes to accept #6 screws
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 1.42
Grade: N42
Coating: Plastic Coated Magnets
Pull Force(Lbs): 26.34
Magnetization Direction: Through Thickness
Magnetic Face: 1 1/2″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

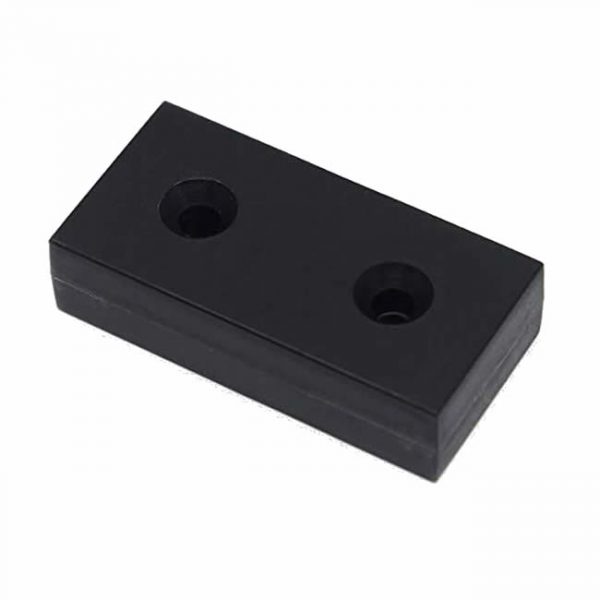

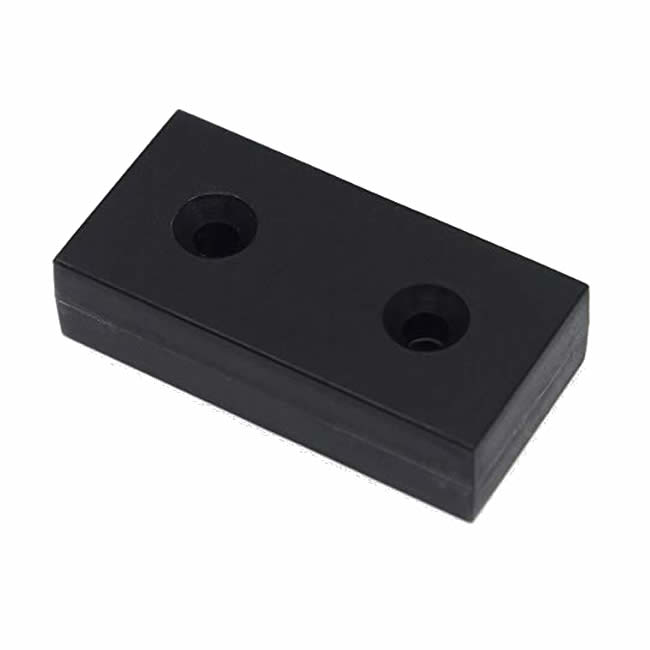

The SMCN0763 countersunk neodymium magnet is made from high-performance N42 NdFeB, with black plastic coating. The dimension of this item is 1 1/2″ × 3/4″ × 3/8″ thick w/ holes to accept #6 screws, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.08875 lbs. It can pull up to 26.34 lbs steel.
