SMCN0779 Neodymium Countersunk Magnet

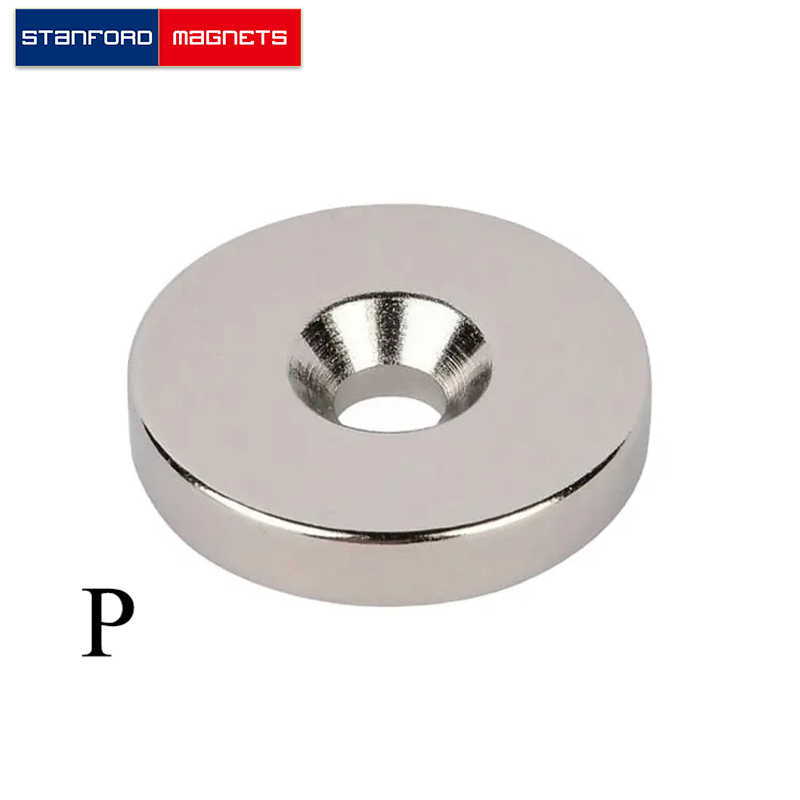

The SMCN0779 Countersunk neodymium magnet is made from high performance N42 NdFeB, with Nickel coating. The dimension of this item is 3/4″ od × 1/8″ thick with countersunk hole for #8 screw, magnetized Through Thickness, with tolerance of ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0265 lbs. It can pull up to 8.68 lbs steel.

INQUIRY Can't Find The Size

Follow Us On


Description

Product ID: SMCN0779
Material: NdFeB
Shape: Countersunk
Dimension: 3/4” od x 1/8” thick with countersunk hole for #8 screw
Tolerances: ±0.004″ x ±0.004″
Weight(Oz.): 0.42
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 8.68
Magnetization direction: Through Thickness
Magnetic Face: 3/4″ od
Max Operating Temp(C/F): 80/176
