SMCN0786 Neodymium Countersunk Magnet | Stanford Magnets

Name: SMCN0786 Neodymium Countersunk Magnet
SKU: SMCN0786

SMCN0786 Neodymium Countersunk Magnet

Product ID: SMCN0786
Material: NdFeB
Shape: Countersunk
Dimension: 1” od x 0.194” id x 0.349” id x 1/4” thick w/ hole to accept #6 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.52
Grade: N42
Coating: Plastic Coated Magnets
Pull Force(Lbs): 9.56
Magnetization Direction: Through Thickness
Magnetic Face: 1″ od
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

Description

Description

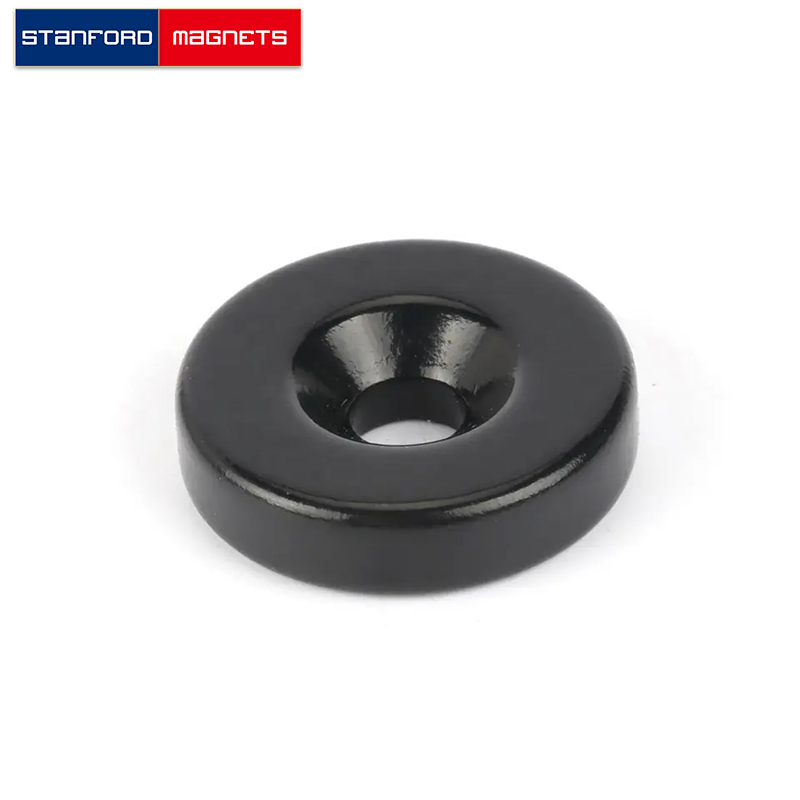

The SMCN0786 Countersunk neodymium magnet is made from high-performance N42 NdFeB, with Nickel Black Plastic coating. The dimension of this item is 1″ od × 0.194″ id × 0.349″ id × 1/4″ thick w/ hole to accept #6 screw, magnetized through thickness, with tolerance of ±0.004″ × ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0321875 lbs. It can pull up to 9.56 lbs steel.
