SMCN0788 Neodymium Countersunk Magnet | Stanford Magnets

Name: SMCN0788 Neodymium Countersunk Magnet
SKU: SMCN0788

SMCN0788 Neodymium Countersunk Magnet

Product ID: SMCN0788
Material: NdFeB
Shape: Countersunk
Dimension: 1” od x 0.195” id x 0.375” id x 1/2” thick with countersunk hole for #8 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 1.63
Grade: N52
Coating: Nickel Coated Magnets
Pull Force(Lbs): 49.06
Magnetization Direction: Through Thickness
Magnetic Face: 1″ od
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

Description

Description

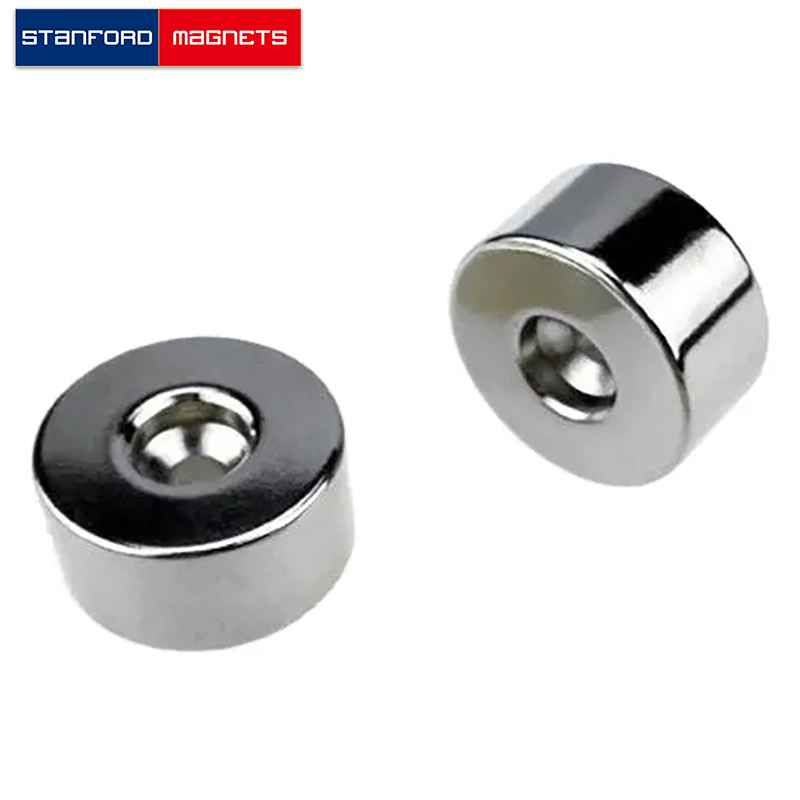

The SMCN0788 countersunk neodymium magnet is made from high-performance N52 NdFeB, with Nickel coating. The dimension of this item is 1″ od × 0.195″ id × 0.375″ id × 1/2″ thick with countersunk hole for #8 screw, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.101875 lbs. It can pull up to 49.06 lbs steel.
