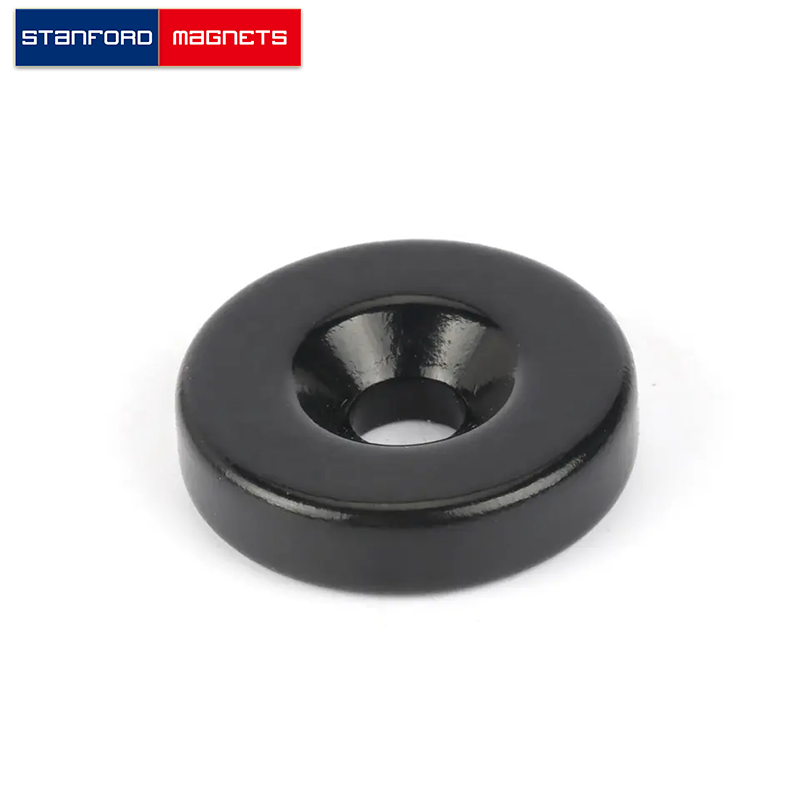

SMCN0789 Neodymium Countersunk Magnet | Stanford Magnets

Name: SMCN0789 Neodymium Countersunk Magnet
SKU: SMCN0789

SMCN0789 Neodymium Countersunk Magnet

Product ID: SMCN0789
Material: NdFeB
Shape: Countersunk
Dimension: 1 1/4” od x 0.221” id x 0.402” id x 3/8” thick w/ hole to accept #10 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 1.38
Grade: N42
Coating: Plastic Coated Magnets
Pull Force(Lbs): 20.49
Magnetization Direction: Through Thickness
Magnetic Face: 1 1/4″ od x 0.221″ id
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On

Description

Description

The SMCN0789 countersunk neodymium magnet is made from high-performance N42 NdFeB, with Nickel black plastic coating. The dimension of this item is 1 1/4″ od × 0.221″ id × 0.402″ id × 3/8″ thick w/ hole to accept #10 screw, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.08625 lbs. It can pull up to 20.49 lbs steel.
