SMCN0790 Neodymium Countersunk Magnet | Stanford Magnets

SMCN0790 Neodymium Countersunk Magnet

Product ID: SMCN0790
Material: NdFeB
Shape: Countersunk
Dimension: 1” x 1/2” x 1/8” thick w/ hole to accept #10 screw
Tolerances: ±0.004″ x ±0.004″ x ±0.004″
Weight(Oz.): 0.26
Grade: N42
Coating: Nickel Coated Magnets
Pull Force(Lbs): 9.67
Magnetization Direction: Through Thickness
Magnetic Face: 1″ x 1/2″
Max Operating Temp(C/F): 80/176

INQUIRY Can't Find The Size

Follow Us On


Description

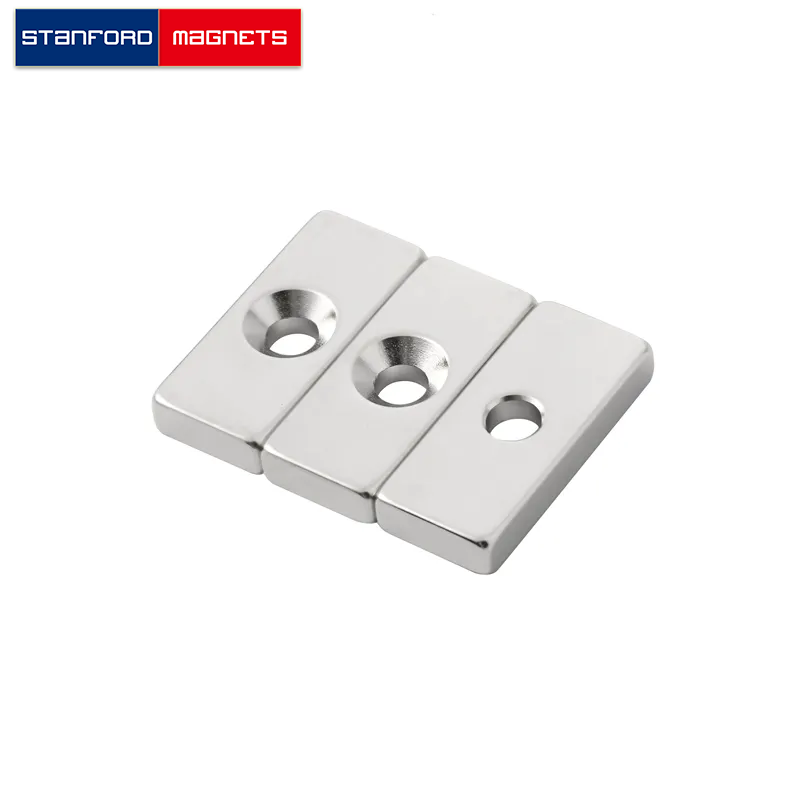

The SMCN0790 countersunk neodymium magnet is made from high-performance N42 NdFeB, with Nickel coating. The dimension of this item is 1″ × 1/2″ × 1/8″ thick w/ hole to accept #10 screw, magnetized through thickness, with the tolerance of ±0.004″ × ±0.004″ × ±0.004″. The weight of this super strong neodymium magnet is 0.0159375 lbs. It can pull up to 9.67 lbs steel.
