SMD8X0BR Rubber Coated Magnets

Dimensions: 1/2″ dia. x 1″ thick
Tolerances: ±0.004″ x ±0.004″
Material: NdFeB, Grade N42
Plating/Coating: Black Rubber Coated
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.662 oz. (18.8 g)
Pull Force, Case 1: 7.87 lbs
Pull Force, Case 2: 9.12 lbs
Surface Field: 5763 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

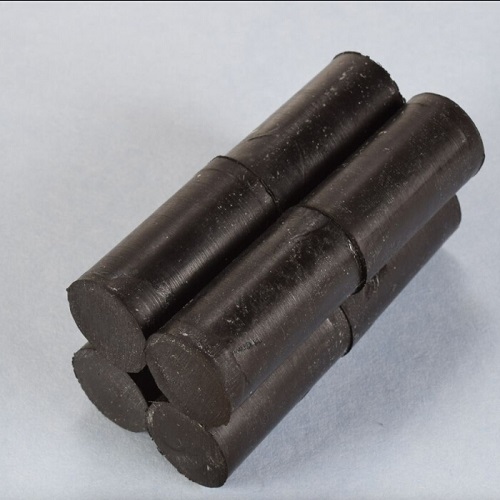

These is our popular 1/2″ diameter x 1″ thick neodymium cylinder magnet with a protective rubber coating.  The rubber coating is very much like tire rubber, which protects the magnet from impact damage and corrosion.  The rubber coating is very water resistant, but not recommended for underwater use, as the rubber seal is not guaranteed waterproof.  The rubber also helps to limit slipping on smooth surfaces.
